ABUS Bravus.3000 MX half cylinder modular
SKU
AB.B3000MX.HZ.452MX
Producer No. B3L452MX
€76.60
incl. VAT, excl. Shipping Cost
Delivery Time
4 - 6 weeks
proprietary profile with production at the manufactor
Please note that the delivery time may be extended for options marked with *!

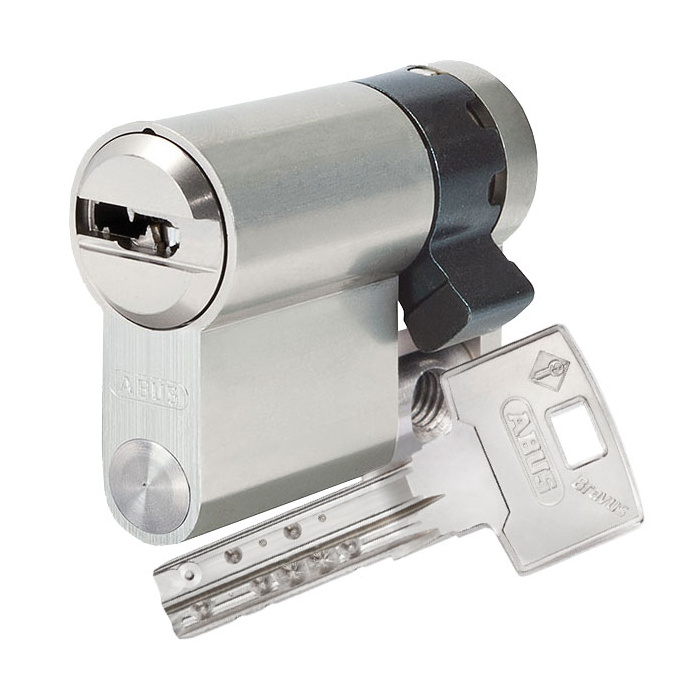

ABUS Bravus.3000 MX half cylinder modular
The modular system variant ABUS Bravus MX makes it possible to react quickly, flexibly and safely to local conditions. MX is an option in the Bravus.3000 reversible key system.
In addition, the integrated drilling protection inlay made of high-strength stainless steel inside the cylinder offers increased drilling protection and additional pulling protection as standard.
The ABUS Bravus.3000 locking system combines legal copy protection with extremely high technical copy protection and thus guarantees secure protection against illegal key copies.
Bravus.3000 is equipped with the Intellitec system, a newly developed test unit on the key and in the cylinder. The Intellitec system's multi-dimensional scanning prevents the locking process with an unauthorized key.
The Bravus.3000 system offers high-quality solutions for applications in the private, commercial and public sector.
Patent protection until 2030 and unlimited trademark protection
Basic length:
- from 30,5/10 mm
- measured from the middle of cam
- extension in 5 mm steps
Technical characteristics:
- patented Intellitec system for extremely high technical copy protection, highest protection against illegal key copies (multidimensional query)
- 3. safety level in the Bravus system (3 locking rows)
- 10 spring loaded locking elements and up to 6 code pins in three locking rows
- 6-pin system
- increased pulling protection due to stainless steel module bar as standard
- increased drilling protection as standard due to hardened steel pins and drilling protection inlay made of stainless steel
- 14 mm core diameter
- cam as standard made of sintered steel with burnished surface for high corrosion protection
- according to DIN 18252 and DIN EN 1303
- can be combined with the Bravus.3000 system
Execution:
- reversible key system
- modular design
- cylinder body: nickel plated brass
- horizontal, easy key insertion
- combination with electronic systems possible at any time
Key:
- key thickness: 3,5 mm
- comfortable, stable reversible key made of wear-resistant nickel silver
- highest key copy protection
- plastic key caps (COMBICAP, SKUNI) (optionally selectable)
- on request with integrated transponder for the control of electronic systems (compatible only with COMBICAP and SKUNI key, later retrofitting only with COMBICAP)
Options / Special equipment:
- different cylinder finishes (Attention: extended delivery time)
Cylinder version:
Operational area:
- indoor and outdoor areas, in connection with DIN mortise locks
- universal use in all types of locks, switches, switch locks
Scope of delivery:
- modular half cylinder incl. 3 or more keys
- 1 fixing screw M5 x 75 mm
- Security card
Manufacturer:
August Bremicker Söhne KG
Altenhofer Weg 25
58300 Wetter
www.abus.com
Highest technical and legal copy protection through Intellitec system
With the key copying machines currently available on the market, no illegal copies of the Bravus key can be made.
Attempts to make an illegal key copy fail because of the Intellitec system. The milling of a key
with Intellitec system is not possible with standard key cutting machines. Without the Intellitec system on the key, the cylinder cannot be locked because the Intellitec system is scanned three-dimensionally in the cylinder. The Intellitec detector in the cylinder checks the exact shape, position and height of the Intellitec pin on the key. If a key does not have
the corresponding Intellitec pin, it cannot be fully inserted into the key channel and the locking process is blocked.
The security card to the locking system is a further security feature. It must be presented to legitimately obtain a copy of the key.
Intellitec system on the key
Intellitec system in cylinder
Precision profile
Intellitec query
Cam position
It is possible to move the cam into different positions. To do this, press the small pin directly on the cam of the cylinder with a pointed object and move the cam to the desired position.
How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
Cylinder finishes:
- surfaces (cylinder body and core) galvanically treated: nickel-plated, black, brass (polished)
- standard finish: nickel-plated (silver coloured)
- for individual design requirements
- if desired, homogeneous appearance of door cylinder and fitting
- Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
nickel-plated

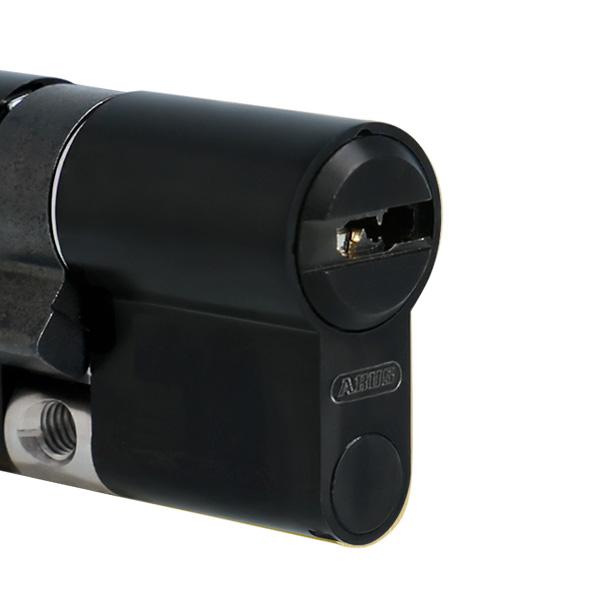

black

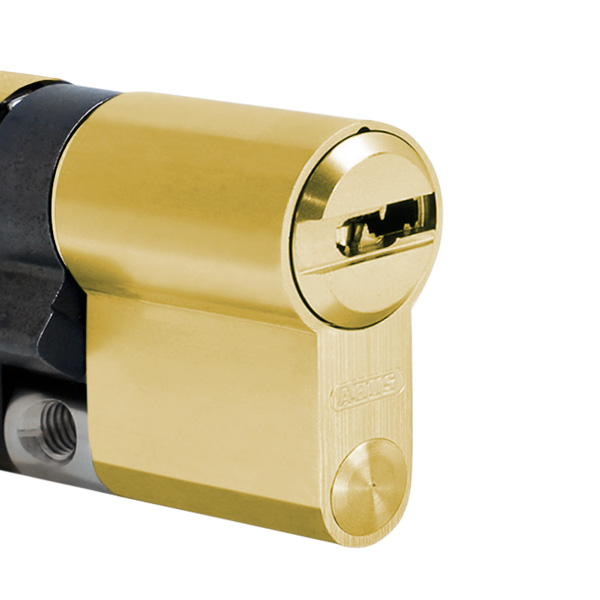

brass, polishedKey cap SKUNI:
- key caps without transponder
- key caps made of plastic with metal reinforcement made of nickel silver
- for special design requirements for the keys
- for easy optical differentiation
- increased locking comfort due to enlarged key head
- subsequent opening of the key cap as well as retrofitting or replacement is not possible
- the key cap is mounted using an ultrasonic welding process, so factory assembly is absolutely necessary
- on request with integrated transponder to control external systems such as time recording, parking management systems or cashless accounting systems
- use exclusively with keys from ABUS Pfaffenhain
- combination with electronics:
In an ABUS locking system, mechanical and electronic locking cylinders can be flexibly combined at any time - either directly ex works or later in retrofitting. This potential for expansion allows you maximum flexibility and future-proofing when planning your building security. With the combination keys you can lock mechanical and electronic cylinders with just one key. Alarm systems, external systems or time recording and payment terminals can be integrated into the locking system at any time.
Thanks to COMBICAP and SKUNI CAP, combination with electronic systems is very easy. The key can be supplied directly from the factory as a mechanical-electronic combination key. Later retrofitting of electronic components is only possible with the COMBICAP.
Key cap SKUNI
SKUNI technical drawing
Key cap COMBICAP:
- key caps without transponder
- retrofittable plastic key cap for all mechanical keys of ABUS locking systems (no factory installation)
- coloured and numbered key cap for easy optical differentiation of keys
- increased locking comfort due to enlarged key head
- COMBICAP enables the combination of mechanical and electronic cylinders in a locking system as well as the retrofitting of electronics
- transponder can be optionally integrated for the control of electronic systems such as time recording, parking management systems, alarm systems or cashless accounting systems
- integration of up to two transponders for different electronic functions, e.g. access control and payment function
- use exclusively with keys from ABUS Pfaffenhain
- combination with electronics:
In an ABUS locking system, mechanical and electronic locking cylinders can be flexibly combined at any time - either directly ex works or later in retrofitting. This potential for expansion allows you maximum flexibility and future-proofing when planning your building security. With the combination keys you can lock mechanical and electronic cylinders with just one key. Alarm systems, external systems or time recording and payment terminals can be integrated into the locking system at any time.
Thanks to COMBICAP and SKUNI CAP, combination with electronic systems is very easy. The key can be supplied directly from the factory as a mechanical-electronic combination key. Later retrofitting of electronic components is only possible with the COMBICAP.
COMBICAP with key
COMBICAP technical drawing
COMBICAP colours
COMBICAP with transponder
