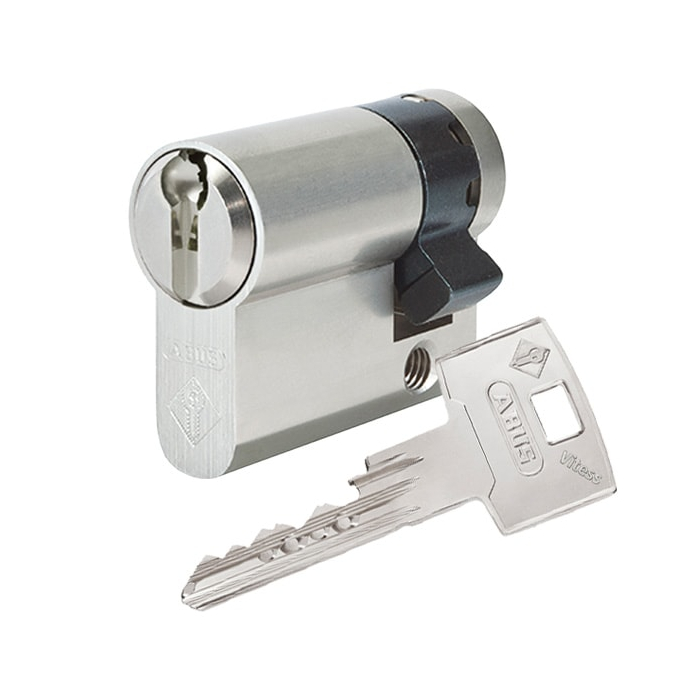

ABUS Vitess.2000 half cylinder

The patented Intop system

The Intop system is a newly developed test unit on the key and in the cylinder, which prevents the locking process with an unauthorised key. In combination with the coded profile rib and the multiple paracentric precision profile, it offers you effective protection against illegal key copying and tampering with the door lock.

Paracentric contour profile

Intop system

Intop test unit on the key and in the cylinder

Cam position

It is possible to move the cam into different positions. To do this, press the small pin directly on the cam of the cylinder with a pointed object and move the cam to the desired position.

How to measure the cylinder length correctly?

Increased drilling protection BS01 (standard)

The drilling protection is achieved by using two additional hardened steel pins (the first and third pair of pins) in the cylinder core and body on each locking side (for double cylinders generally on both sides).
This achieves the attack resistance class 2 according to EN 1303 and makes violent opening attempts more difficult.

Increased drilling protection with SKG*** certificate

The SKG*** certificate results from the use of four hardened steel pins in the cylinder body, as well as an additional four hardened steel pins in the cylinder core on each locking side. This certificate is used for special requirements on the attack resistance of the cylinders.

nickel-plated

brass polished

Seawater resistance:

• for use in marine climate or salty atmosphere
• features: Cam and fixing screw made of stainless steel, coated spring washers
• the special equipment was tested for corrosion resistance in salt spray and climate tests according to DIN 50021SS
• restrictions possible in combination with other optional equipment

Key cap SKUNI:

• Key caps without transponder
• key caps made of plastic with metal reinforcement made of nickel silver
• for special design requirements for the keys
• for easy optical differentiation
• increased locking comfort due to enlarged key head
• subsequent opening of the key cap as well as retrofitting or replacement is not possible
• the key cap is mounted using an ultrasonic welding process, so factory assembly is absolutely necessary
• on request with integrated transponder to control external systems such as time recording, parking management systems or cashless accounting systems
• use exclusively with keys from ABUS Pfaffenhain
• Combination with electronics:
  In an ABUS locking system, mechanical and electronic locking cylinders can be flexibly combined at any time - either directly ex works or later in retrofitting. This potential for expansion allows you maximum flexibility and future-proofing when planning your building security. With the combination keys you can lock mechanical and electronic cylinders with just one key. Alarm systems, external systems or time recording and payment terminals can be integrated into the locking system at any time.
  Thanks to COMBICAP and SKUNI CAP, combination with electronic systems is very easy. The key can be supplied directly from the factory as a mechanical-electronic combination key. Later retrofitting of electronic components is only possible with the COMBICAP.

Key cap SKUNI

SKUNI technical drawing

Key cap COMBICAP:

• Key caps without transponder
• retrofittable plastic key cap for all mechanical keys of ABUS locking systems (no factory installation)
• coloured and numbered key cap for easy optical differentiation of keys
• increased locking comfort due to enlarged key head
• COMBICAP enables the combination of mechanical and electronic cylinders in a locking system as well as the retrofitting of electronics
• transponder can be optionally integrated for the control of electronic systems such as time recording, parking management systems, alarm systems or cashless accounting systems
• integration of up to two transponders for different electronic functions, e.g. access control and payment function
• use exclusively with keys from ABUS Pfaffenhain
• Combination with electronics:
  In an ABUS locking system, mechanical and electronic locking cylinders can be flexibly combined at any time - either directly ex works or later in retrofitting. This potential for expansion allows you maximum flexibility and future-proofing when planning your building security. With the combination keys you can lock mechanical and electronic cylinders with just one key. Alarm systems, external systems or time recording and payment terminals can be integrated into the locking system at any time.
  Thanks to COMBICAP and SKUNI CAP, combination with electronic systems is very easy. The key can be supplied directly from the factory as a mechanical-electronic combination key. Later retrofitting of electronic components is only possible with the COMBICAP.

COMBICAP with key

COMBICAP technical drawing

COMBICAP colors

COMBICAP with transponder
