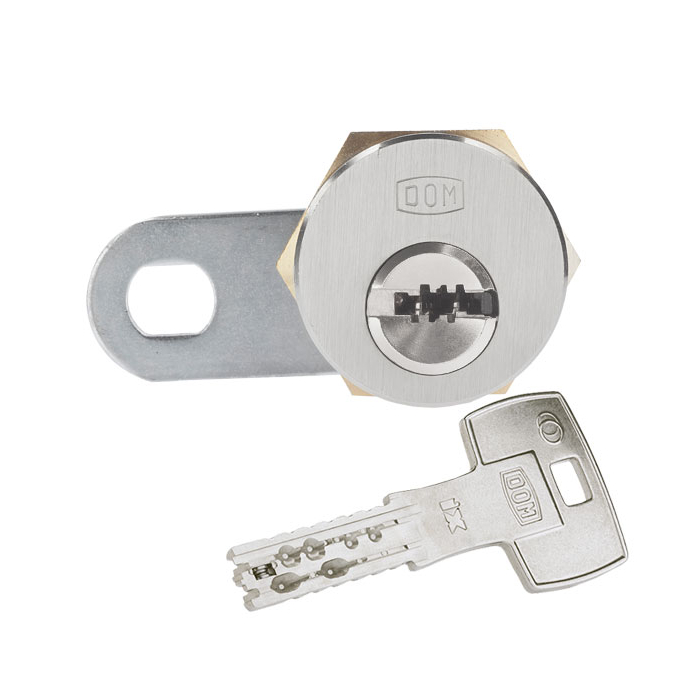

DOM ix TwinStar® camlock cylinder 2-in-1
"Two roles - double security"
With the ix TwinStar®, DOM once again demonstrates its comprehensive expertise in the field of mechanical locking technology. The new reversible key system is particularly well protected against unauthorised copying by a floating double roller in the key.
DOM ix Twinstar® is a secure locking system for all those looking for the highest quality. It meets the high requirements of VdS, DIN and SKG and can be used in residential buildings, offices or private companies. Thanks to a complex system - 11 spring-loaded locking elements, 10 of which are pin locking elements and 1 locking shaft locking element - it is suitable for private homes up to large buildings with high security standards.
2-in-1 system
This unique feature offers for registered single locks the possibility to easily recode the cylinders in your system! With 2-in-1, each cylinder has a integrated spare coding and comes with a second set of keys. If you suspect your security is compromised, simply insert a key from the second set into the cylinder, turn it over, and the first set immediately loses its locking function!
There are special variants for detached and semi-detached houses with optimum safety equipment.
Patent protection until 2036
Measurements:
- installation depth: 33,8 mm
- body length: 25,3 mm
- clamping dimension (standard closing lever): 26,3 mm
- mounting hole: Ø 25 mm lateral reduced to 22,5 mm
Technical characteristics:
- high protection against manipulation due to 22-fold locking authorisation query
- anti-bumping & anti-picking pins
- up to 10 positively guided, solid profile control pins
- 11 spring-loaded locking elements made of special brass or hardened steel: 10 pin locking elements, 1 locking shaft locking element (controlled by a locking shaft function pin) offer high protection against manipulation against intelligent opening methods and impact protection
- consisting of 20 narrowed core and body pins
- axially spring-loaded and movable locking shaft technology
- stainless steel locking shaft is actuated by a control pin positioned in the core
- 13 mm core diameter
- locking path: 90°, lever adjustable in 45° steps by 360 degrees
- certified according to ISO 9001:2015
- 10 years DOM additional guarantee if registered under DOM
Execution:
- cylinder body and cylinder core made of solid brass (high corrosion protection)
- finish: dull nickel
- reversible key system
- horizontal key insertion
- compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via clip tag)
Key:
- key thickness: 2,6 mm
- is delivered with a second set of keys
- nickel silver reversible key: corrosion-free and low-wear
- active copy protection: 2 independently movable rollers in the key tip (patented), each with a spring-loaded active function query, make it difficult to make duplicate keys
- mobility detection of the rollers through labyrinth in the key channel
- key tip with ramp for pin locking elements
- trough bores with optimized angular cuts of the flank angles
- complex coding in the key with known high-ribbed technology make it difficult to make duplicate keys
- no key blanks available on the market
- key blade length adapted to all common safety fittings
- new key head design
Options / Special equipment:
- different closing lever variants (standard: closing lever 20 x 3 x 50 mm)
- Always indicate the desired locking path when ordering!
Locking path:
- locking path A: open on the top, closed on the left
- locking path B: open on the top, closed on the right
- locking path E: open on the bottom, closed on the left
- locking path F: open on the bottom, closed on the right
Cylinder version:
Operational area:
- letter box systems, metal cabinets, cassettes, tool compartments, etc.
- cloakroom lockers
- inspection hatches
- vending machines
Scope of delivery:
- camlock cylinder (type 382) incl. 2 x 3 or more keys
- closing lever
- Security card per each set of keys
2-in-1 system:
The DOM system is prepared at the factory for a second lock, which the customer can call up himself if required. The locking cylinder can be easily recoded with the second set of keys. A 360° turn in the cylinder - and the new lock is activated. The old keys are thus easily rendered ineffective.
- 2 x 3 keys, 2-in-1 recodable
- number of keys per key set selectable
- Please note that this function cannot be reset! After the 1st locking with the 2nd key set, the 1st key set is deactivated forever!
2-in-1 system
Reversible key with patented movable double roller
It may look like a normal key, but the ix TwinStar is the pinnacle in the evolution of DOM keys. Every technology, innovation and patent for mechanical security ever developed by DOM engineers has resulted in this unique reversible key. It features more complex copy protection technologies integrated into the key and more pins for more security and possible combinations. It also offers the highest level of user-friendliness due to the reversible technology.
Twin caster
It only looks like a small wheel, but the double role in the key of the DOM ix TwinStar is a really big deal. Not only does it make it almost impossible to copy the cylinder unless you have the right special tool, it also generates a large number of extra key combinations, making it a perfect addition to the security system. Best of all, it is still as easy to use as a regular reversible key.
How to change your camlock cylinder?
We explain in the video how to change your camlock cylinder easily and quickly with the help of our templates.
If it is necessary to adjust the mounting hole, use our template for adjusting the mounting hole. You can find the template in the "Downloads" section.
Closing lever variants:
- DOM closing lever (standard): 20 x 3 x 50 mm, clamping dimension: 26,3 mm
- DOM Renz closing lever: suitable for Renz models, development length: 48,5 mm, clamping dimension: 11,8 mm
- DOM JU closing lever, development length: 52,0 mm, clamping dimension: 11 mm
- Please note that the camlock hole still needs to be filed or milled out.
DOM closing lever (standard)
Renz closing lever
JU closing lever
DOM offers you a free additional guarantee on this system in addition to the DOM guarantee with a total running time of 10 years.
For this you must register with DOM within 1 month of purchasing the registered single lock.
You can find further information on this at DOM under the following link.
