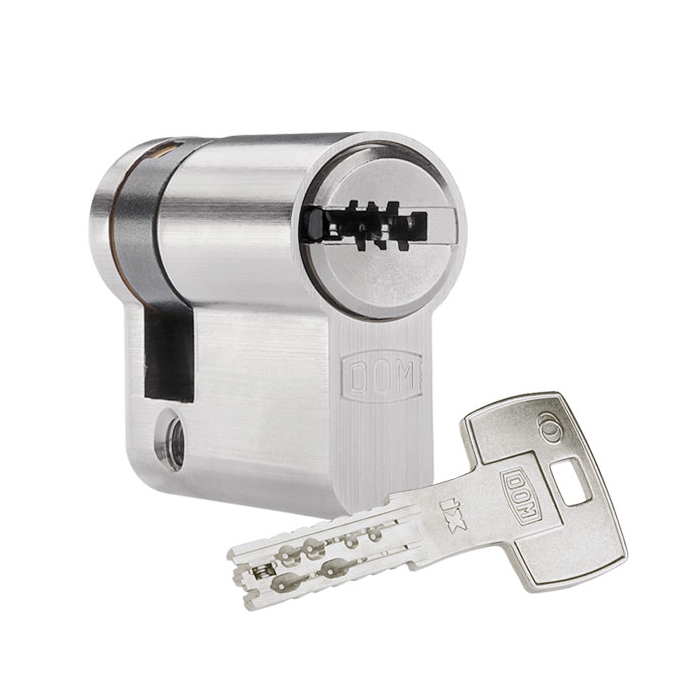

DOM ix TwinStar® half cylinder
"Two roles - double security"
With the ix TwinStar®, DOM once again demonstrates its comprehensive expertise in the field of mechanical locking technology. The new reversible key system is particularly well protected against unauthorised copying by a floating double roller in the key.
DOM ix Twinstar® is a secure locking system for all those looking for the highest quality. It meets the high requirements of VdS, DIN and SKG and can be used in residential buildings, offices or private companies. Thanks to a complex system - 11 spring-loaded locking elements, 10 of which are pin locking elements and 1 locking shaft locking element - it is suitable for private homes up to large buildings with high security standards.
Patent protection until 2036
Basic length:
- from 30,5/10 mm
- measured from the middle of cam
- extension in 5 mm steps
- from 75,5/10 mm, production takes place in modular design
Technical characteristics:
- high protection against manipulation due to 22-fold locking authorisation query
- anti-bumping & anti-picking pins
- drilling protection VdS B+ as standard
- optional highest possible VdS class BZ+ (with modular design) (locking system: BZ)
- up to 10 positively guided, solid profile control pins enable complex locking systems
- 11 spring-loaded locking elements made of special brass or hardened steel: 10 pin locking elements, 1 locking shaft locking element (controlled by a locking shaft function pin) offer high protection against manipulation against intelligent opening methods and impact protection
- consisting of 20 narrowed core and body pins
- axially spring-loaded and movable locking shaft technology
- stainless steel locking shaft is actuated by a control pin positioned in the core
- 13 mm core diameter
- one-piece cam made of sintered steel
- according to DIN EN 1303:2015-08, certified according to ISO 9001:2015
- locking security class 6, attack resistance class C according to DIN EN 1303
- 10 years DOM additional guarantee if registered under DOM
Execution:
- cylinder body and cylinder core made of solid brass (high corrosion protection)
- finish: dull nickel
- reversible key system
- horizontal key insertion
- cam 8-fold adjustable
- compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via clip tag)
Key:
- key thickness: 2,6 mm
- nickel silver reversible key: corrosion-free and low-wear
- active copy protection: 2 independently movable rollers in the key tip (patented), each with a spring-loaded active function query, make it difficult to make duplicate keys
- mobility detection of the rollers through labyrinth in the key channel
- key tip with ramp for pin locking elements
- trough bores with optimized angular cuts of the flank angles
- complex coding in the key with known high-ribbed technology make it difficult to make duplicate keys
- no key blanks available on the market
- key blade length adapted to all standard safety fittings
- new key head design
Options / Special equipment:
- different cylinder finishes (polished brass, oxidized bronze, matt black chrome)
- increased drilling protection + modular design = VdS BZ+ (VdS*** / VdS security class 3)
- weather protection
Cylinder version:
Operational area:
- for single- or multi-turn mortise locks and various other locks
- switch cylinder for elevator technology
- garage doors, key switches, activation devices, roller shutters (with side mounting)
- single family houses with high protection requirements
- apartment buildings
- airports, educational institutions, financial buildings, residential buildings, hospitals, industry, hotel buildings
- small to large office buildings/companies, industrial premises
Scope of delivery:
- half cylinder incl. 3 or more keys
- 1 fixing screw
- Security card
Manufacturer:
DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com
Reversible key with patented movable double roller
It may look like a normal key, but the ix TwinStar is the pinnacle in the evolution of DOM keys. Every technology, innovation and patent for mechanical security ever developed by DOM engineers has resulted in this unique reversible key. It features more complex copy protection technologies integrated into the key and more pins for more security and possible combinations. It also offers the highest level of user-friendliness due to the reversible technology.
Twin caster
It only looks like a small wheel, but the double role in the key of the DOM ix TwinStar is a really big deal. Not only does it make it almost impossible to copy the cylinder unless you have the right special tool, it also generates a large number of extra key combinations, making it a perfect addition to the security system. Best of all, it is still as easy to use as a regular reversible key.
Impact protection
The cylinder contains impact protection pins and other safety elements that prevent access by impact keys to turn the inner pins.
Openeing protection
The cylinder contains specially shaped unlocking security pins that prevent opening with the help of a lock pick.
Pulling protection
The cylinder contains a special cylinder core which prevents the cylinder from being pulled out by drilling into the core.
Cam position
The locking cam can be turned to 8 different locking positions (see white circles). The black circle represents the position at which the locking cam is positioned by default.
If you want to change the locking cam, it works as follows:
- Insert the key into the cylinder and turn the cam.
- Press the locking pin in the locking cam with a pointed object
(e.g. the DOM release needle or a thin slotted screwdriver) downwards towards the pressure spring. - Hold the key firmly and then turn the locking cam to the desired position.
- If the adjustment is successful, the locking pin can be heard to engage.
How to measure the cylinder length correctly?
You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".
Drilling protection VdS BZ+ = high safety for special requirements
In cooperation with the police, VdS Schadenverhütung GmbH has developed a star system that divides mechanical locking systems into three different security classes, thus providing you with a quick overview of the respective security level.
- recognition by VdS Schadesverhütung GmbH
- VdS checks locking systems and awards recognition from A to BZ+
- drilling protection VdS BZ+ = VdS security class 3
- VdS BZ+: increased protection against drilling and core pulling due to carbide pins in cylinder body and cylinder core arranged in several planes
- this drilling protection variant is manufactured in modular technology with increased tear-off protection
Cylinder finishes:
- finishes (polished brass, oxidized bronze, matt black chrome)
- standard finish: dull nickel
- matt finish on the front side only
- for individual design requirements
- if desired, homogeneous appearance of door cylinder and fitting
Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.
dull nickel
polished brass
oxidized bronze
matt black chrome
Seawater resistance:
- for use under marine climate or salty atmosphere
- fixing screw pure brass, cam sintered steel (chemically nickel plated)
- cylinder finish: matt chrome
- restrictions possible in combination with other optional equipment
DOM offers you a free additional guarantee on this system in addition to the DOM guarantee with a total term of 10 years.
To do this, you must register with DOM within 1 month of purchasing the registered single lock.
You can find further information on this at DOM under the following link.
