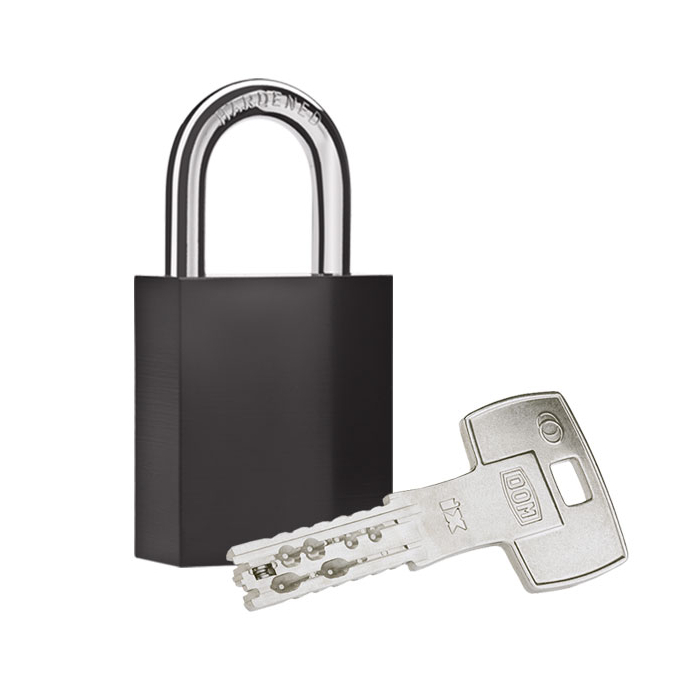

DOM ix TwinStar padlock
SKU
DO.twinstar.VH.777G3
Producer No. 777G3ixTwinStar
€112.60
incl. VAT, excl. Shipping Cost
Delivery Time
1 - 2 weeks
factory profile
Please note that the delivery time may be extended for options marked with *!
DOM ix TwinStar® padlock
"Two roles - double security"
With the ix TwinStar®, DOM once again demonstrates its comprehensive expertise in the field of mechanical locking technology. The new reversible key system is particularly well protected against unauthorised copying by a floating double roller in the key.
DOM ix Twinstar® is a secure locking system for all those looking for the highest quality. It meets the high requirements of VdS, DIN and SKG and can be used in residential buildings, offices or private companies. Thanks to a complex system - 11 spring-loaded locking elements, 10 of which are pin locking elements and 1 locking shaft locking element - it is suitable for private homes up to large buildings with high security standards.
Patent protection until 2036
Measurements:
- clear shackle height: 32,5 mm (optional: 60 mm)
- shackle: Ø 8,74 mm
- case width: 52 mm
Technical characteristics:
- high protection against manipulation by 22-fold locking authorisation query
- anti-bumping & anti-picking pins
- drilling protection VdS B+ as standard
- up to 10 positively guided, solid profile control pins enable complex locking systems
- 11 spring-loaded locking elements made of special brass or hardened steel: 10 pin locking elements, 1 locking shaft locking element (controlled by a locking shaft function pin) offer high protection against manipulation against intelligent opening methods and impact protection
- consisting of 20 narrowed core and body pins
- axially spring-loaded and movable locking shaft technology
- stainless steel locking shaft is actuated by a control pin positioned in the core
- 13 mm core diameter
- one-piece cam made of sintered steel
- forced locking (standard)
- according to DIN EN 1303:2015-08, certified according to ISO 9001:2015
- locking security class 6, attack resistance class C according to DIN EN 1303
- classification according to DIN EN 12320 class 1-1-5-3
- 10 years DOM additional guarantee if registered under DOM
Execution:
- cylinder: solid brass, dull nickel (high corrosion protection)
- padlock: solid brass, shackle: stainless steel
- finish: black chrome plated
- reversible key system
- horizontal key insertion
- compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via clip tag)
Key:
- key thickness: 2,6 mm
- reversible key made of nickel silver: corrosion-free and low-wear
- active copy protection: 2 independently movable rollers in the key tip (patented), each with a spring-loaded active function query, make it difficult to make duplicate keys
- mobility detection of the rollers through labyrinth in the key channel
- key tip with ramp for pin locking elements
- trough bores with optimized angular cuts of the flank angles
- complex coding in the key with known high-ribbed technology make it difficult to make duplicate keys
- no key blanks available on the market
- key blade length adapted to all standard safety fittings
- new key head design
Options / Special equipment:
- different shackle height (60 mm)
- self-locking (key can also be removed when open)
- weather protection (cylinder)
Cylinder version:
Operational area:
- protection of medium to large valuables with a high risk of theft
- ideal for use in areas subject to severe weather conditions (e.g. in sea and harbour areas)
Scope of delivery:
- padlock (type 777 G3) incl. 3 or more keys
- Security card
Reversible key with patented movable double roller
It may look like a normal key, but the ix TwinStar is the pinnacle in the evolution of DOM keys. Every technology, innovation and patent for mechanical security ever developed by DOM engineers has resulted in this unique reversible key. It features more complex copy protection technologies integrated into the key and more pins for more security and possible combinations. It also offers the highest level of user-friendliness due to the reversible technology.
Twin caster
It only looks like a small wheel, but the double role in the key of the DOM ix TwinStar is a really big deal. Not only does it make it almost impossible to copy the cylinder unless you have the right special tool, it also generates a large number of extra key combinations, making it a perfect addition to the security system. Best of all, it is still as easy to use as a regular reversible key.
Seawater resistance (cylinder):
- for use in marine climate or salty atmosphere
- fixing screw pure brass, cam sintered steel (chemically nickel plated)
- cylinder finish: matt chrome
- restrictions possible in combination with other optional equipment
DOM offers you a free additional guarantee on this system in addition to the DOM guarantee with a total term of 10 years.
To do this, you must register with DOM within 1 month of purchasing the registered single lock.
You can find further information on this at DOM under the following link.
