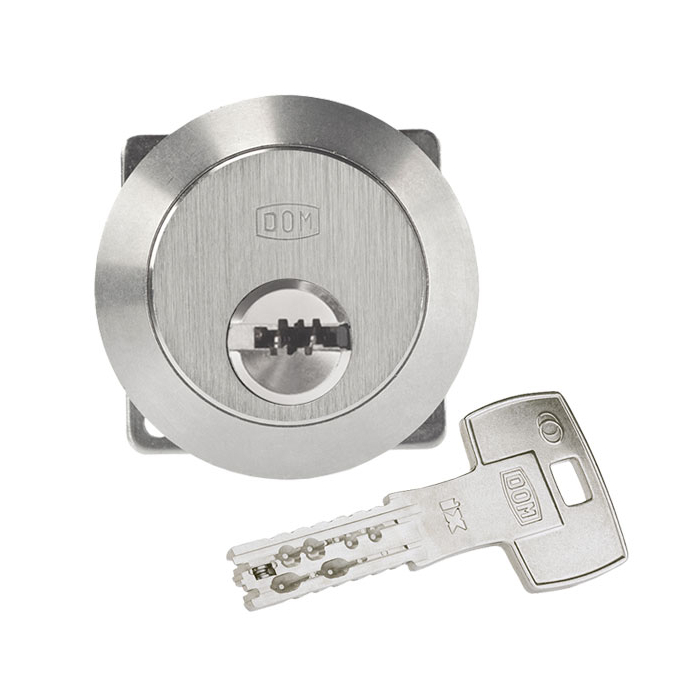

DOM ix TwinStar rim cylinder

DOM ix TwinStar® rim cylinder

"Two roles - double security"

With the ix TwinStar®, DOM once again demonstrates its comprehensive expertise in the field of mechanical locking technology. The new reversible key system is particularly well protected against unauthorised copying by a floating double roller in the key.

DOM ix Twinstar® is a secure locking system for all those looking for the highest quality. It meets the high requirements of VdS, DIN and SKG and can be used in residential buildings, offices or private companies. Thanks to a complex system - 11 spring-loaded locking elements, 10 of which are pin locking elements and 1 locking shaft locking element - it is suitable for private homes up to large buildings with high security standards.

Patent protection until 2036

Measurements:

• case length: 24,5 mm
• mounting diameter: 32 mm
• drilling distance: 21 mm

Technical characteristics:

• high protection against manipulation due to 22-fold locking authorisation query
• anti-bumping & anti-picking pins
• up to 10 positively guided, solid profile control pins enable complex locking systems
• 11 spring-loaded locking elements made of special brass or hardened steel: 10 pin locking elements, 1 locking shaft locking element (controlled by a locking shaft function pin) offer high protection against manipulation against intelligent opening methods and impact protection
• consisting of 20 narrowed core and body pins
• axially spring-loaded and movable locking shaft technology
• stainless steel locking shaft is actuated by a control pin positioned in the core
• 13 mm core diameter
• certified according to ISO 9001:2015
• 10 years DOM additional guarantee if registered under DOM

Execution:

• cylinder body and cylinder core made of solid brass (high corrosion protection)
• finish: dull nickel
• reversible key system
• horizontal key insertion
• compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via clip tag)

Key:

• key thickness: 2,6 mm
• nickel silver reversible key: corrosion-free and low-wear
• active copy protection: 2 independently movable rollers in the key tip (patented), each with a spring-loaded active function query, make it difficult to make duplicate keys
• mobility detection of the rollers through labyrinth in the key channel
• key tip with ramp for pin locking elements
• trough bores with optimized angular cuts of the flank angles
• complex coding in the key with known high rib technology makes it difficult to make duplicate keys
• no key blanks available on the market
• key blade length adapted to all standard safety fittings
• new key head design

Cylinder version:

• DOM ix TwinStar rim cylinder with 2-in-1 system

Operational area:

• external doors, additional box lock for front doors with increased security requirements
• for additional box locks, these are listed under door accessories
• design for wooden doors
• suitable for DOM box lock with locking shackle 3019-03-2

Scope of delivery:

• rim cylinder (type 555 P) incl. 3 or more keys
• rosette
• holding plate and 2 fixing screws
• Security card

Manufacturer:

DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com
