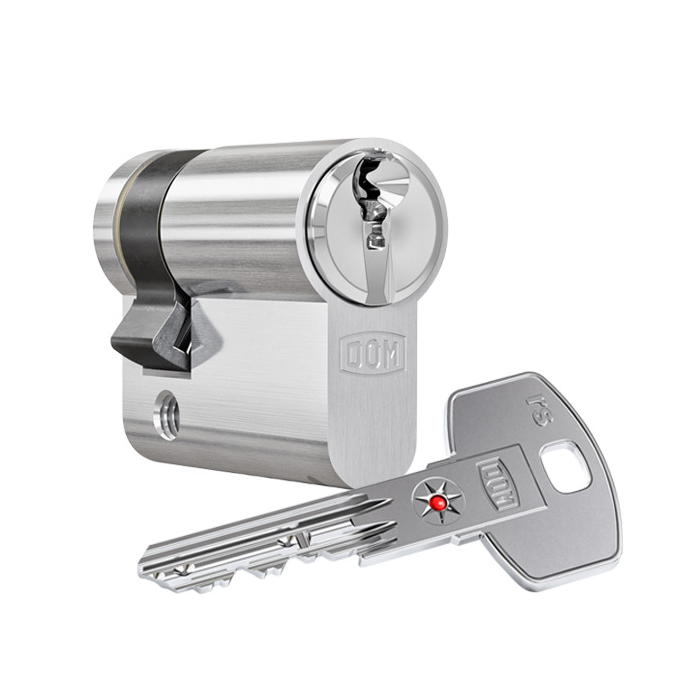

DOM rs Sirius (RS7SI) half cylinder

SKU

DO.rsSirius.HZ.333H

Producer No. 333HrsSirius

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€20.80

incl. VAT, excl. Shipping Cost

Delivery Time

4 - 6 weeks

proprietary profile with production at the manufactor

Please note that the delivery time may be extended for options marked with *!

Product settings

locking type

single lock

keyed alike

cylinder length outside

finishes HZ

drilling protection HZ

modular design HZ

weather protection HZ

key

Qty

Details

DOM rs Sirius (RS7SI) half cylinder

With the DOM rs Sirius (commercial profile RS7SI) you get a high standard of security at an attractive price. The high level of technical copy protection "starline" ensures that no illegal copies of keys are made. In combination with the integrated, high-level drilling and pulling protection as well as the up to 19-fold locking authorisation query, any attempt at manipulation stands (almost) no chance.

Patent protection until 2043 (pending)

Basic length:

from 30,5/10 mm
cylinder protrusion: 1,5 mm
measured from the middle of cam
extension in 5 mm steps
from 75,5/10 mm, production takes place in modular design

Technical characteristics:

up to 19-fold locking authorisation query
up to 6 spring-loaded locking elements made of special brass/hardened steel and up to 11 lateral control pins
technical key copy protection "starline" (integrated on the key) with additional SL-function pin
carbide pins in the body + hardened steel pin in the core to protect against drilling
as standard: high-grade drilling and pulling protection
high level of manipulation protection
certified according to DIN EN 1303 160B0C6C
certified according to SKG**

Execution:

cylinder body: brass matt nickel-plated
serrated key system
vertical key insertion
cam 8-fold adjustable
compatible with DOM electronics (made possible by integrating passive transponder technology into the key bow via a clip tag)

Key:

key thickness: 2,6 mm
nickel silver serrated key: corrosion-free and low-wear
ergonomically shaped
extended key neck adapted to standard security fittings
modern design with red coloured ball embedded in the key
high level of key copy protection thanks to additional technical function query on the key, key catch in the case of manipulation
compatible with DOM clip tag

Options / Special equipment:

different cylinder finishes (polished brass, oxidized bronze (burnished), matt black chrome)
increased drilling protection
seawater resistance (with this option ist the cylinder finish matt chrome)
modular design (cannot be combined with freewheel function)
freewheel (cannot be combined with modular design) (on request)

Operational area:

for single or multi-turn mortise locks and various other locks
garage doors, key-operated switches, arming devices, roller shutters (with side mounting)
small to large companies
complex locking systems, such as airports, financial buildings, residential buildings, hospitals, educational institutions

Scope of delivery:

half cylinder incl. ordered keys
1 fixing screw
Security card

Manufacturer:

DOM Sicherheitstechnik GmbH & Co. KG
Wesselinger Straße 10-16
D-50321 Brühl/Köln
www.dom-security.com

Technical details

Technical key copy protection "starline"

The rs Sirius (RS7SI) locking cylinder offers a high level of security with its "Starline" technical key copy protection and has excellent burglary protection thanks to its high level of drilling and pulling protection.

Cam position

The locking cam can be turned to 8 different locking positions (see white circles). The black circle represents the position at which the locking cam is positioned by default.

If you want to change the locking cam, it works as follows:

Insert the key into the cylinder and turn the cam.
Press the locking pin in the locking cam with a pointed object
(e.g. the DOM release needle or a thin slotted screwdriver) downwards towards the pressure spring.
Hold the key firmly and then turn the locking cam to the desired position.
If the adjustment is successful, the locking pin can be heard to engage.

How to measure the cylinder length correctly?

You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".

Options

Increased drilling protection (one-sided):

The cylinder already has a high level of drilling and pulling protection as standard.

Increased drilling and core pulling protection can be optionally selected using carbide pins arranged in several levels in the cylinder body and cylinder core.

Cylinder finishes:

finishes (polished brass, oxidized bronze, matt black chrome)
standard finish: dull nickel
matt finish on the front side only
for individual design requirements
if desired, homogeneous appearance of door cylinder and fitting

Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.

dull nickel

polished brass

oxidized bronze

matt black chrome

Seawater resistance:

for use in marine climate or salty atmosphere
fixing screw pure brass, cam sintered steel (chemically nickel plated)
cylinder finish: matt chrome
restrictions possible in combination with other optional equipment
in combination with freewheel: clutch not protected against seawater

Modular design:

The modular cylinder is a profile cylinder in which the different cylinder lengths can be easily adjusted by means of suitable intermediate parts of the respective locking system. This also protects against violent "tearing" and "pulling" on the cylinder (modular technology with increased tear-off protection).
Cannot be combined with freewheel function.

Freewheel (on request):

The profile cylinders which have a freely rotating cam are designated as freewheel cylinders.
The cam can be moved freely through 360° when no key is inserted. DOM freewheel cylinders comply with DIN EN 18252:2006-12.
When the key is inserted, the spring-loaded clutch engages in the cam. This then allows the cylinder to be closed in the conventional way with the key.

Usually only necessary for special panic or automatic locks. If in doubt, please check with the door manufacturer.
for multi-point locks with panic function: latch and bolt must be moved into the lock body when the door is closed with the handle. To ensure this, the cam must be able to turn freely.
in motor-driven locks and special escape door locks
restrictions possible in combination with other optional equipment
cannot be combined with modular design
with this option the cylinder has no emergency and danger function
freewheel function is tested according to FZG (test guideline for profile cylinders with freewheel function for gear locks in escape door locks)
