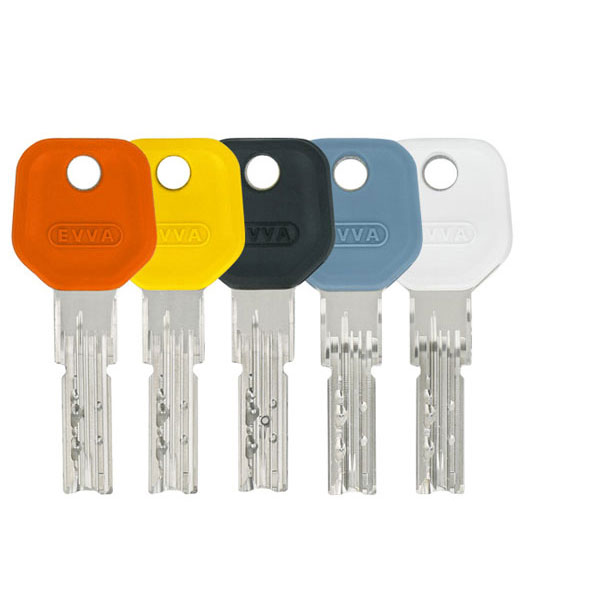

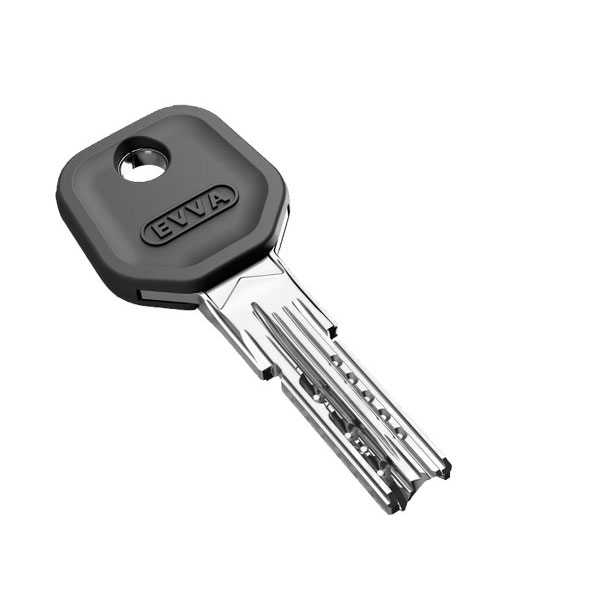

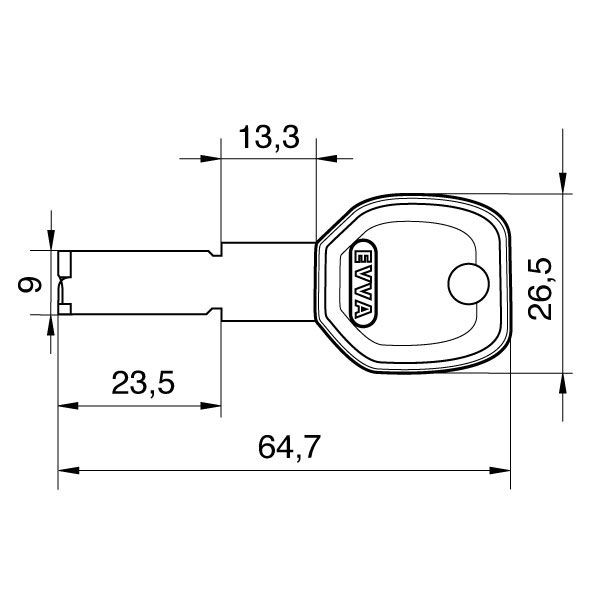

design key

design key with magnetic protection

colour selection design cap

colour selection - special requests

Qty

Details

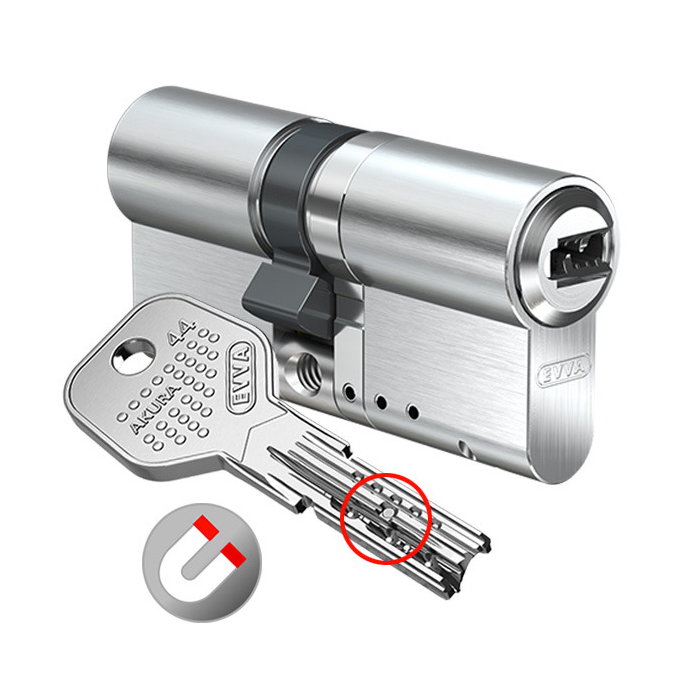

EVVA Akura double cylinder

The most flexible system for residential buildings on your side
What characterises a residential locking system? Safety, flexibility, attractive pricing and investment security. Akura 44 scores in all these categories.

The Akura 44 access system is suitable for many types of buildings due to its high performance capability. The reversible key, the security features of the system and the wide range of cylinder designs are ideal for residential locking systems. Many options for more security and easy installation expand the field of application. Thus, the security level can be increased with the optional copy protection.

Patent protection until 2037

Basic length:

from 30/30 mm, short cylinder from 27/27 mm
measured from the middle of cam
extension 5 mm per side

Technical characteristics:

modular design
authorization check on cylinders occurs in several levels
3 locking pins levels
combination of a variable length profile, 6 active and up to 10 passive scanning pins
drilling protection in core and body (on both sides)
pulling protection (on both sides)
picking and scanning protection to protect against illegal opening methods
fire resistance 90 minutes - suitable for fire doors
cam movement 360 degrees, cam removal position 30 degrees (from the short side)
width of cam: 9,3 mm
certified according to DIN EN 1303:2015 160B0C6B

Execution:

reversible key system
horizontal, easy key insertion
cylinder body: brass matt nickel plated, cylinder core: basic material brass
combination with electronic locking system possible

Key:

key thickness: 3,5 mm
variable length profile
made from high quality nickel silver, strong key cross section
very resistant, low wear
3D shaped key tip, torsion curve
optimum grip and ergonomics
optional: key with color dot, design key
optional with magnetic pill - 100% 3D print secure (magnetic copy protection)
soon available: key with extended key neck

Options / Special equipment:

different cylinder finishes (attention: extended delivery time)
cylinder with magnetic protection
emergency and danger function
freewheel
seawater resistance
wear resistance
more options available soon: weather protection, Vario function

Operational area:

connecting doors, front doors, apartment entrance doors, tubular frame doors, security doors
for well structured locking systems
residential buildings, industry & commerce, office buildings
mortise locks according to DIN, ÖNORM, surface mounted locks for Euro profile
suitable for fire resistance doors

Scope of delivery:

double cylinder incl. ordered key
fixing screw M5
Installation tip: When installing, make sure that there is an outer overlap of max. 3 mm in connection with a door fitting that cannot be unscrewed from the outside!
Security card

Technical details

The authorization check on Akura 44 cylinders occurs in several levels simultaneously, namely through the combination of a variable length profile, 6 active and up to 10 passive scanning pins, which also extend the calculation capacities. Optional magnetic copy protection protects critical access points, if required and makes it difficult to copy keys or manipulate with the cylinder.

The Akura 44 cylinder offers drilling, pulling, picking and scanning protection and thus protects against illegal opening methods. Increased core-pulling and drilling protection due to special hard metal elements in the core and body designed for doors with increased security risk (for double cylinders generally on both sides). Examples include side entrances and other doors into low-visibility access situations.

Due to the use of a special nickel silver alloy in the cylinder core, the locking cylinder withstands increased forces, e.g. in central cylinders in frequently locked entrance doors.

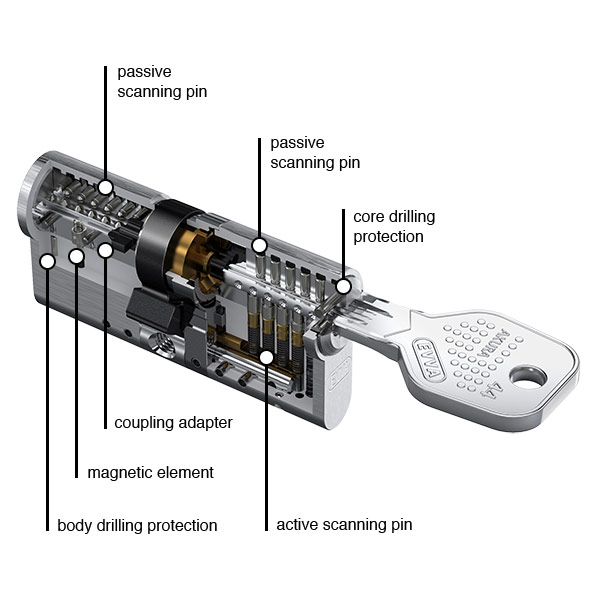

EVVA Akura cylinder cross section

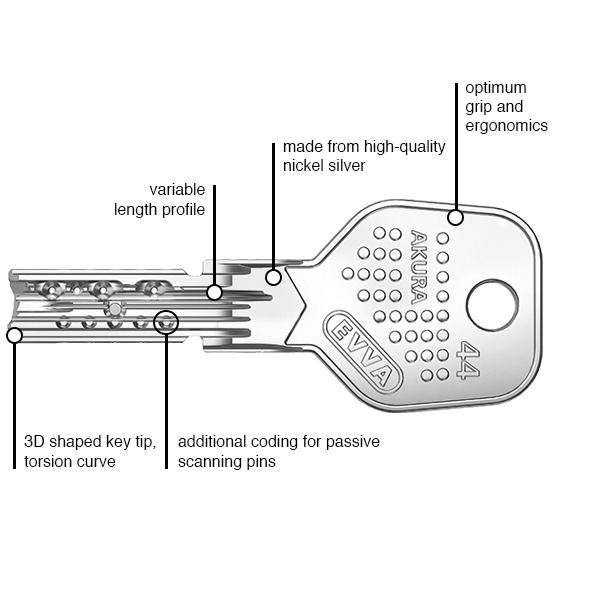

EVVA Akura key features

Modular design
The AKURA 44 cylinders are manufactured in modular design and are therefore more than flexible. With the modular system, the cylinder length can be adjusted later by the specialist or a specific function (e.g. double-sided lockability) can be assigned to the cylinder. This allows you to benefit from flexible solutions and reduce your time and costs. The cylinder lengths can be changed in 5 mm steps.

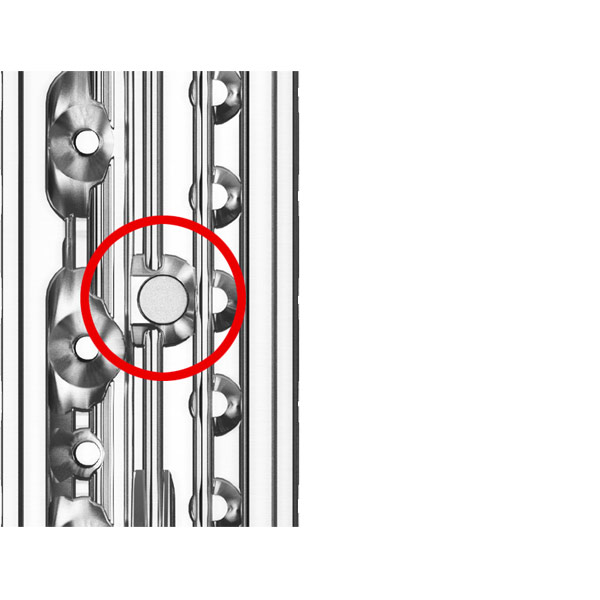

On request more secure due to magnetic protection
The magnetic protection guarantees the key 100% 3D print security and the cylinder break-open security.

It is very difficult to copy the key even with professional tools, with the magnetic copy protection. A magnetic pill activates a mechanism in the locking cylinder that verifies locking authorization. This option cannot be installed retrospectively and requires the use of the keys with magnet option.

How to measure the cylinder length correctly?

You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".

Options

Cylinder finishes:

standard finish: nickel
optional: brass, brown patinated, black patinated, chrome polished
for individual design requirements
if desired, homogeneous appearance of door cylinder and fitting
optional finishes are not combinable with: seawater resistance, weather protection

Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.

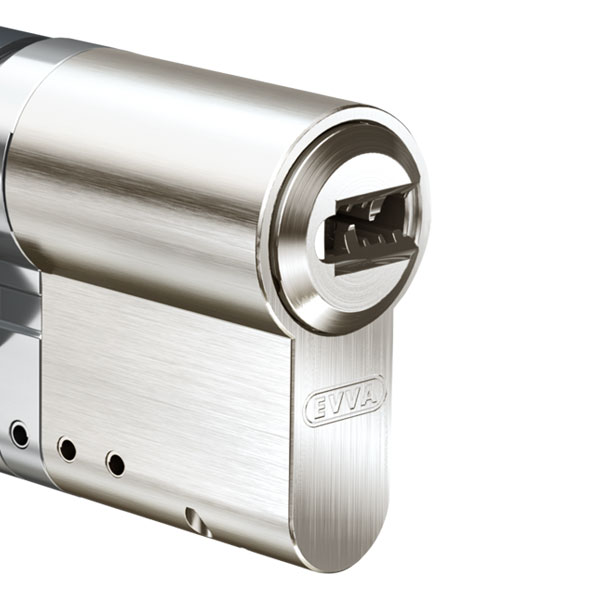

nickel

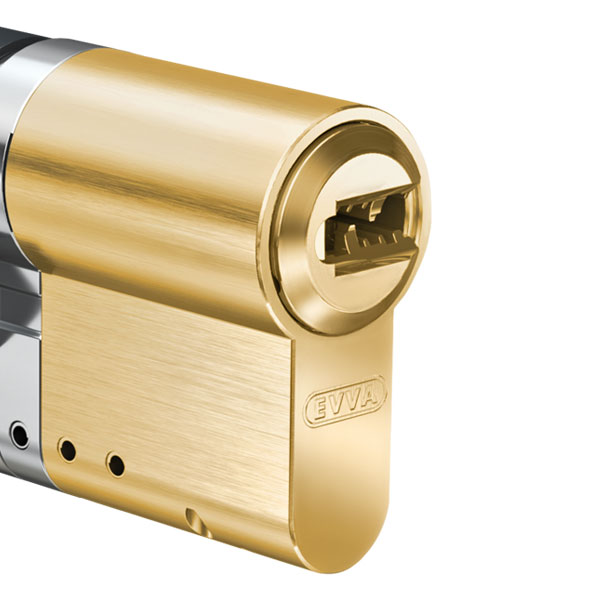

brass

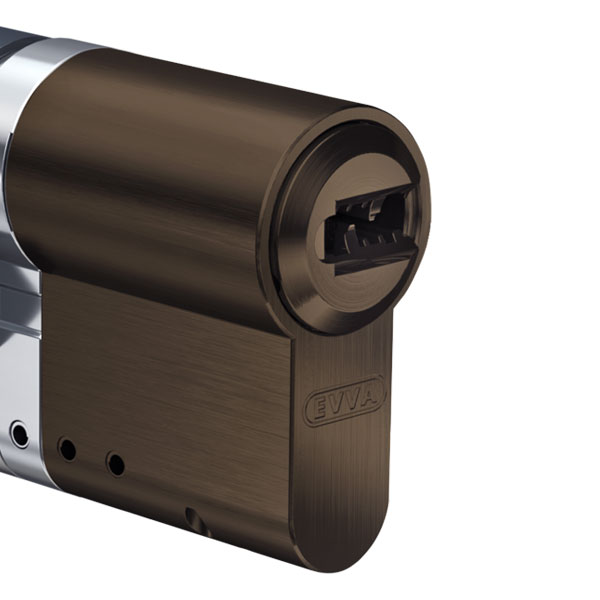

brown patinated

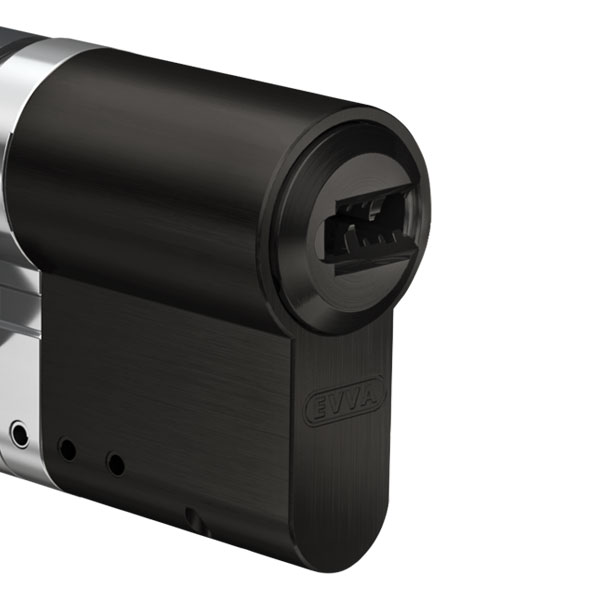

black patinated

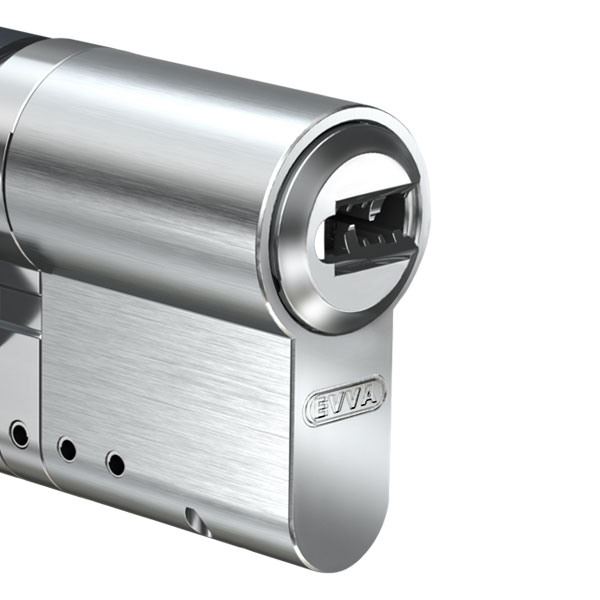

chrome polished

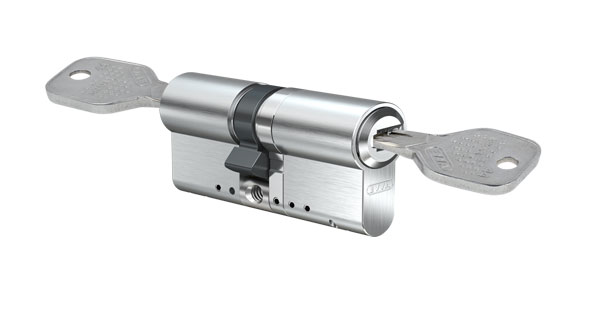

BSZ – double cylinder lockable on both sides, danger function

Ideal in hazardous situation. Enables the cylinder lock to be unlocked even when an authorized key has been inserted on the opposite side. The system also prevents authorized users from accidentally locking themselves out with the key inserted on the other side.

This option is only possible from a cylinder length of 30/35 or 27/35 mm.

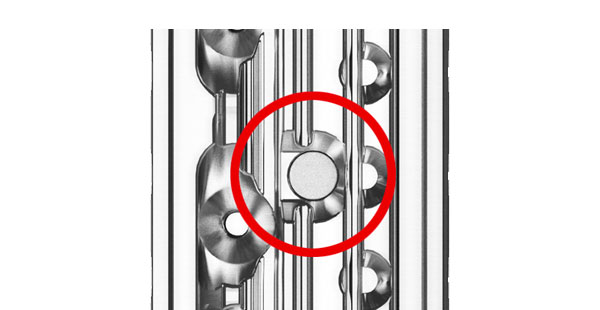

MAG - magnetic copy protection:

In a single or keyed alike locking system, a combination of cylinders with and without magnetic protection is not possible.

Freewheel function 360°:

single freewheel only for double cylinder and half cylinder
the coupling is driven via the tip of the key
from cylinder length: 30/35 mm or 27/35 mm possible
restrictions possible in combination with other optional equipment
freewheel function (FZG): freewheel with forced decoupling / forced controlled decoupling of the cam, the clutch is driven by the tip of the key, suitable for gear anti-panic multipoint locks (only if mandatory by the lock manufacturer).

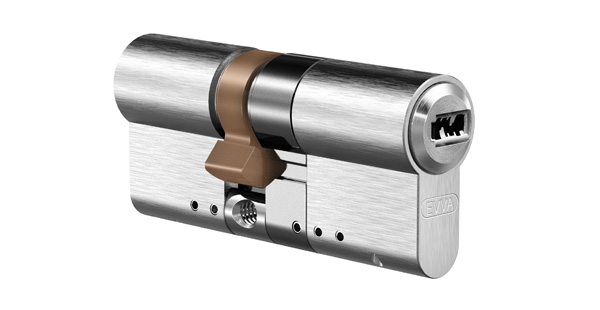

SEW - Seawater resistance:

for cylinders that are exposed to strong environmental influences
cylinder parts susceptible to corrosion are delivered with a special surface finish
only available in nickel
cannot be combined with options: wear resistance, magnetic copy protection - cylinder
this option is only possible from a cylinder length of 30/30 mm
Please note:
When ordering this option the delivery time will be extended.

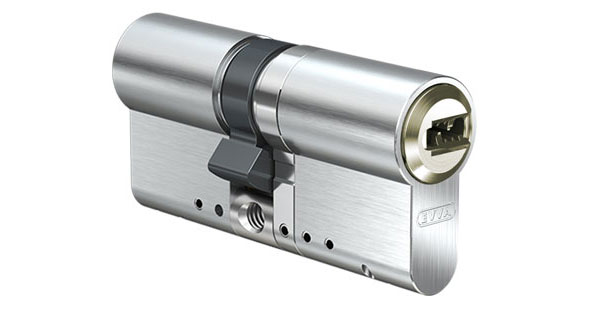

NS - wear resistance:

Through the use of a special nickel silver alloy in the cylinder plug, the cylinder lock withstands increased stresses, such as those occurring in central cylinders in frequently locked house entrance doors.

cannot be combined with options: seawater-resistant, weather protection
this option is only possible from a cylinder length of 30/30 mm
for double cylinders on both sides, half and knob cylinders on one side outside

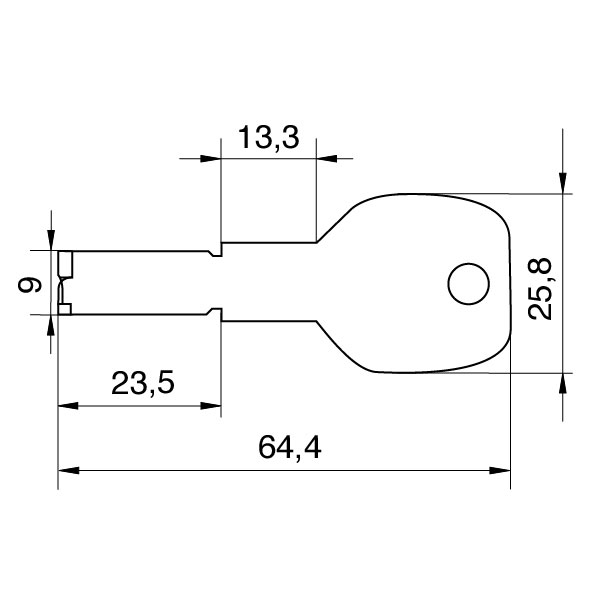

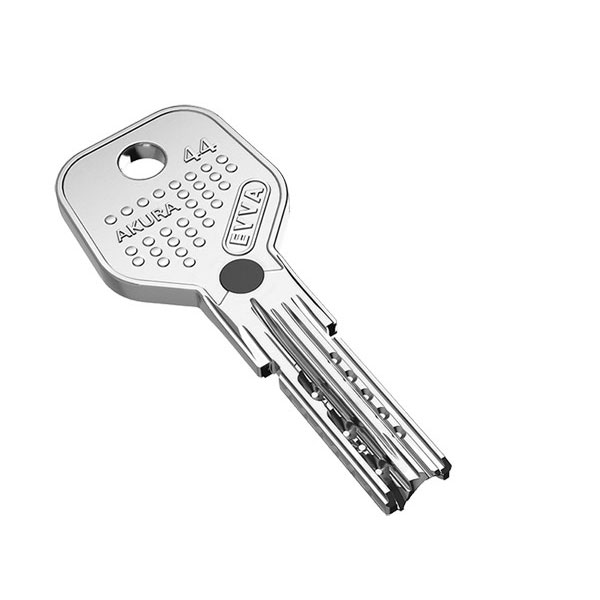

Key with color dot:

colors: eggplant, blue, brown, dark red, yellow, green, pink, red, black, purple
color dot in a recess on the key neck
for optical differentiation
color dot may be different from the picture on the website
