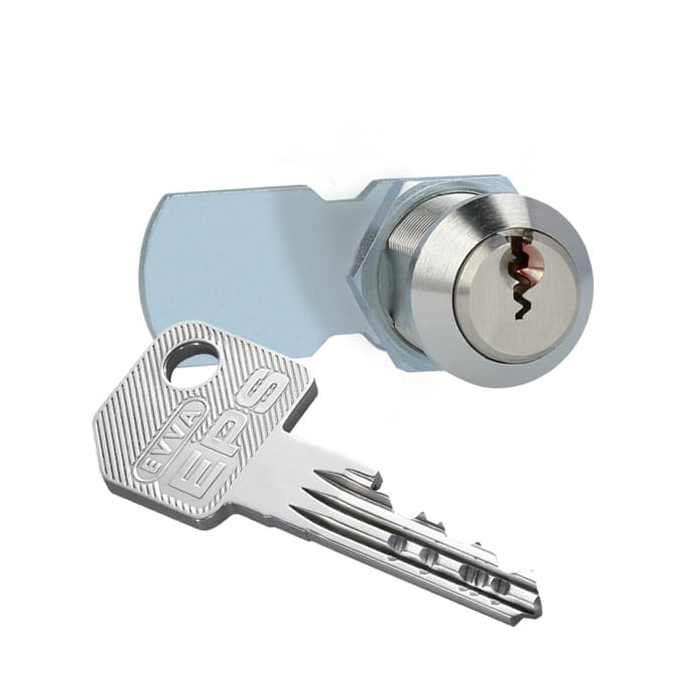

EVVA EPS-5 camlock cylinder MB19

SKU
EV.EPS5.BK.MB19
Producer No. EPS5 MB19 SYMO
€52.60
incl. VAT, excl. Shipping Cost
Delivery Time
3 - 5 weeks
factory profile
Please note that the delivery time may be extended for options marked with *!

Product settings

EVVA EPS-5 camlock cylinder / lever cylinder MB19 SYMO (factory profile)

EVVA EPS-5 factory profile (Extended Profile System) is a proven, conventional locking system developed on the tumbler or locking pin principle. The system is characterised by high wear resistance. The exact key centring due to the special profile rib construction ensures that the key can be inserted without any problems. It is a patented, multiple overlapping key profile and the authorization check is carried out on several security levels.

EPS provides reliable protection for private homes, but is also a frequently used access system in clearly structured locking systems, such as in office buildings, restaurants or residential buildings.

Patent protection until 2041

Measurements:

  • clamping dimension (H7233): 23,2 mm
  • installation depth: 35,9 mm
  • mounting hole: Ø 19,5 mm lateral reduced to 16,5 mm
  • cylinder front: Ø 22 mm

Technical characteristics:

  • compact design
  • spring-loaded pin system with 5 active, spring-loaded sensing elements and up to 20 additional side codings
  • integrated manipulation control of the key in the cylinder
  • locking authorisation query by means of core rib profiling and profile locking bar, which is controlled spring-free via a curve in the body
  • high wear resistance
  • locking path: 90°, lever adjustable in 45° steps by 360 degrees
  • secured against twisting by lateral surfaces
  • for material thickness up to 14 mm
  • with thread M19 for fixing nut SW22
  • cylinder fixed at the rear with hexagon nut (SW22)
  • lever fastening with 2 screws on the rear side

Execution:

  • conventional locking system
  • length profile system with large key cross-sections
  • patented, multiple overlapping key profile
  • vertical, easy key insertion
  • locking by closing lever
  • key can only be removed when closed
  • base material: brass
  • closing lever: steel, blue galvanized
  • combination with electronic locking system possible

Key:

  • key thickness: 2,3 mm
  • serrated key made of special resistant nickel silver alloy
  • exact key centring: easy insertion of the key thanks to the special profile rib construction
  • with large key cross-sections
  • very resistant, low wear
  • optional: key caps, key with extended key neck

Options / Special equipment:

  • different closing lever variants (standard closing lever H7233: 33 mm)
  • Always indicate the desired locking path when ordering!

Locking paths:

  • locking path A: closed on the left, open on the top
  • locking path B: closed on the right, open on the top
  • locking path E: closed on the top, open on the left
  • locking path F: closed on the top, open on the right

Operational area:

  • wooden and tin boxes
  • mailboxes with small cylinder punching
  • showcase locks, key boxes, wardrobe boxes/lockers, cupboards
  • office building
  • gastronomy
  • residences
  • for clearly structured locking systems

Scope of delivery:

  • camlock cylinder / lever cylinder MB19 SYMO incl. 2 or more keys
  • selected closing lever, mounted
  • fixing nut M19
  • Security card

EPS is a spring-loaded pin system with 5 active, spring-loaded, sensing elements which offers up to 20 additional side codes. The integrated manipulation control of the key in the cylinder as well as the double-acting locking pins ensure good security.

EPS-5 consists of a length and a transverse profile as well as a pin system - this results in 3 security levels.
The control is carried out in the cylinder core when the key is inserted into the keyway - using the core rib profiling and a profile locking bar, which is controlled springlessly via a curve in the body.

The system is characterized by high wear resistance. The exact key centring due to the special profile rib construction ensures easy insertion of the key.

EVVA EPS-5 cylinder cross-sectionEVVA EPS-5 cylinder cross-section
EVVA EPS-5 key featuresEVVA EPS-5 key features

How to change your camlock cylinder?

We explain in the video how to change your camlock cylinder easily and quickly with the help of our templates.
If it is necessary to adjust the mounting hole, use our template for adjusting the mounting hole. You can find the template in the "Downloads" section.

Locking paths:

  • locking path A: closed on the left, open on the top
  • locking path B: closed on the right, open on the top
  • locking path E: closed on the top, open on the left
  • locking path F: closed on the top, open on the right
EVVA locking paths

Closing lever variants:

  • standard closing lever H7233: A = 33 mm, clamping dimension: 23,2 mm
  • the Renz HB closing lever is suitable for Renz models
  • If nothing else is requested, we order the respective standard dimension of the locking lever length "A" and for the Renz closing lever "A" and "B (marked in blue). If you require a different length, please indicate this in the order comments during the ordering process.
  • Please note that the camlock hole still has to be filed or milled out.
EVVA standard closing leverStandard closing lever H7233
closing lever H91Closing lever H9139
closing lever H92Closing lever H9241


closing lever H87Closing lever H8745
closing lever Renz HB2217Closing lever Renz HB2217


closing lever H73Closing lever H7333
closing lever H94Closing lever H9441
closing lever H88Closing lever H8845


You can find an overview of the locking paths and closing levers under Download to download.



Key with design cap:

  • colours: black, blue and red, yellow, green and white
  • material thickness design cap: 7,2 mm
  • plastic caps for special design requirements for the keys
  • ergonomic design and high quality for better haptics
  • simple optical differentiation
  • simple management of locking systems through colour assignment
  • consecutive numbering of the key (key with the same locking authorisation receives a consecutive number)
  • use exclusively for EVVA keys
  • factory assembly, subsequent opening and retrofitting is not possible
EVVA EPS design cap
EVVA EPS design cap color
EVVA EPS design cap

Key with extended key neck:

  • specially shaped key
  • for use with armoured fittings
EVVA EPS key with extended key neck
key with extended key neck
EVVA EPS key with extended key neck dimensions
key with extended key neck dimensions
