EVVA EPS-5 camlock cylinder MB23G

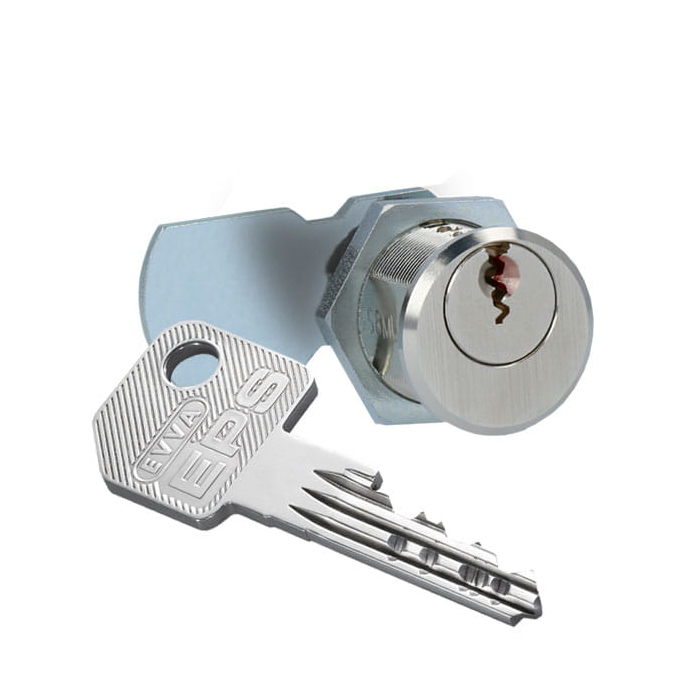

EVVA EPS-5 camlock cylinder / lever cylinder MB23G (factory profile)

EVVA EPS-5 factory profile (Extended Profile System) is a proven, conventional locking system developed on the tumbler or locking pin principle. The system is characterised by high wear resistance. The exact key centring due to the special profile rib construction ensures that the key can be inserted without any problems. It is a patented, multiple overlapping key profile and the authorization check is carried out on several security levels.

EPS provides reliable protection for private homes, but is also a frequently used access system in clearly structured locking systems, such as in office buildings, restaurants or residential buildings.

Patent protection until 2041

Measurements:

• clamping dimension (H7233): 26,4 mm
• installation depth: 31,4 mm
• mounting hole: Ø 22,5 mm lateral reduced to 18 mm
• cylinder front: Ø 24,8 mm

Technical characteristics:

• compact design
• spring-loaded pin system with 5 active, spring-loaded sensing elements and up to 20 additional side codings
• integrated manipulation control of the key in the cylinder
• locking authorisation query by means of core rib profiling and profile locking bar, which is controlled spring-free via a curve in the body
• carbide elements against drilling in the core
• high wear resistance
• locking path: 90°, lever adjustable in 45° steps by 360 degrees
• secured against rotation by means of surfaces on both sides of the cylinder
• for material thickness up to 17 mm
• with thread M22 for mounting nut SW27
• cylinder fixed at the rear with hexagon nut (SW27)
• lever fastening with 2 screws on the rear side

Execution:

• conventional locking system
• length profile system with large key cross-sections
• patented, multiple overlapping key profile
• vertical, easy key insertion
• locking by closing lever
• key can only be removed when closed
• base material: brass
• closing lever: steel, blue galvanized
• combination with electronic locking system possible

Key:

• key thickness: 2,3 mm
• serrated key made of special resistant nickel silver alloy
• exact key centring: easy insertion of the key thanks to the special profile rib construction
• with large key cross-sections
• very resistant, low-wear
• optional: key caps, key with extended key neck

Options / Special equipment:

• different closing lever variants (standard closing lever H7233: 33 mm)
• Always indicate the desired locking path when ordering!

Locking paths:

• locking path A: closed on the left, open on the top
• locking path B: closed on the right, open on the top
• locking path E: closed on the top, open on the left
• locking path F: closed on the top, open on the right

Operational area:

• wooden and tin boxes
• mailboxes with medium cylinder punching
• showcase locks, key boxes, wardrobe boxes/lockers, cupboards
• office building
• gastronomy
• residences
• for clearly structured locking systems

Scope of delivery:

• camlock cylinder / lever cylinder MB23G incl. 2 or more keys
• selected closing lever, mounted
• fixing nut M22
• Security card

Manufacturer:

EVVA Sicherheitstechnik GmbH
Höffgeshofweg 30
47807 Krefeld
www.evva.com
