EVVA MCS MB19 camlock cylinder

SKU

EV.MCS.BK.MB19

Producer No. MCS MB19

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€160.35

incl. VAT, excl. Shipping Cost

Delivery Time

3 - 5 weeks

factory profile

Please note that the delivery time may be extended for options marked with *!

Product settings

locking type

single lock

keyed alike + €8.35

locking path

closing lever

number of keys

design cap for key

colour selection design cap

key with coloured dot

colour selection colour dot

colour selection - special requests

Qty

Details

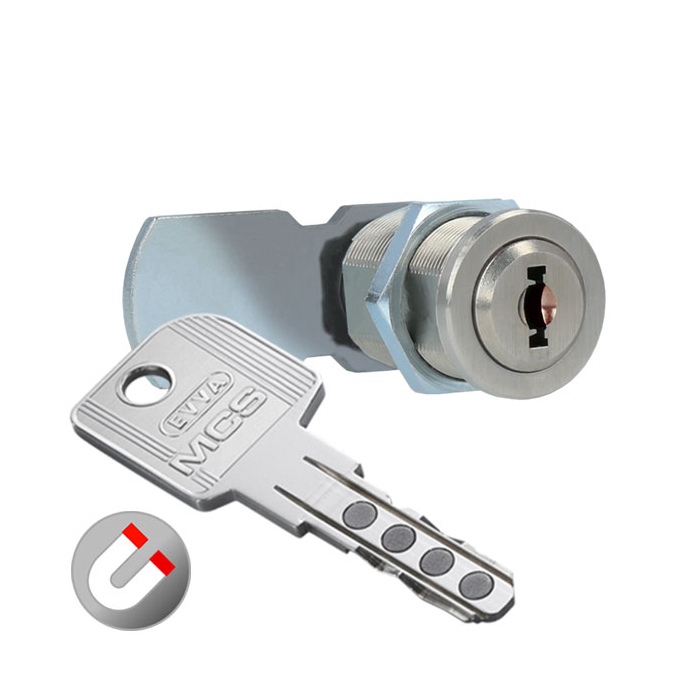

EVVA MCS camlock cylinder / lever cylinder MB19

MCS (Magnetic Code System) guarantees triple security through one magnetic and two mechanical codings. The permanent magnetisation holds constantly. The cylinder core contains 8 rotating magnetic rotors to which the 4 magnetic pills of the key are assigned. If is the key from keyway removed, they always assume a different position. Each magnetic pill can be magnetised differently on each side.

MCS is ideal for locking systems with high demands on perfection and security. Especially for objects where highly sensitive and irretrievable valuables have to be protected.
Locking system reserves can already be taken into account when planning the locking system.

Patent protection until 2035

Measurements:

clamping dimension (H7233): 26,5 mm
installation depth: 32,5 mm
mounting hole: Ø 19,5 mm lateral reduced to 16,5 mm
cylinder front: Ø 21,8 mm

Technical characteristics:

magnetic code system
dual authorization queries during the locking process
freely rotating magnetic rotors to which the four magnetic pills of the MCS key are assigned
7 additional springless mechanical horizontal locking elements
mechanical control by a length profile system and positively controlled locking pin detection on both key sides
drilling protection: hardened HSS steel pins in the cylinder core
picking and scanning protection
impact key protection
locking path: 90°, closing lever adjustable in 45° steps by 360 degrees
secured against rotation by two surfaces
for material thicknesses up to 14 mm
with thread M19 for fixing nut SW22

Execution:

reversible key system
vertical, easy key insertion
high wear resistance
locking by closing lever
key can only be removed when closed
base material: brass
closing lever: galvanised steel
drive plate, fixing screws: galvanized steel
combination with electronic locking system possible

Key:

key thickness: 2,4 mm
magnetic key made of special resistant nickel silver alloy
permanent magnets made of Samarium-Cobalt-5 guarantee a long life
maximum security against duplication of keys
very resistant, low wear
optional: ergonomic design key, key with colour dot

Options / Special equipment:

different closing lever variants (standard closing lever H7233: 33 mm)
Always indicate the desired locking path when ordering!

Locking paths:

locking path A: closed on the left, open on the top
locking path B: closed on the right, open on the top
locking path E: closed on the top, open on the left
locking path F: closed on the top, open on the right

Operational area:

wood and metal doors
mailboxes, key boxes
emergency key boxes, showcase locks
cloakroom boxes/lockers
luxury trade, research institutions
hospitals, international airports
residences
office building

Scope of delivery:

camlock cylinder / lever cylinder MB19 incl. 2 or more keys
selected closing lever, mounted
fixing nut M19
Security card

Manufacturer:

EVVA Sicherheitstechnik GmbH
Höffgeshofweg 30
47807 Krefeld
www.evva.com

Technical details

Magnetic code system - maximum key copying security

The MCS cylinder contains a total of eight freely rotating magnetic rotors to the left and right of the key channel, to which the four magnetic pills of the MCS key are assigned. When an MCS key with a matching magnetic coding is inserted, all magnetic rotors are brought into the correct locking position. 2 mechanic bars above these assign the locking authorisation.
The mechanical control is carried out by a profile system (length profile) and by a positively controlled locking pin detection on both key sides with manipulation control. The permanent magnets made of Samarium-Cobalt-5 guarantee a long service life and cannot be remagnetized or demagnetized by conventional tools.
The unique magnetic keys guarantee maximum security against key copying. Each lock and each key is unique.

EVVA MCS cylinder cross-section

EVVA MCS key features

Locking cylinder security
The innovative technologies of the MCS cylinder offer sustainable protection against illegal opening methods:

Picking and scanning protection
The freely rotating magnetic rotors of the MCS cylinder are spatially separated from the key channel and therefore cannot be scanned or manipulated. This means that it is not possible to scan the magnetic coding in the MCS cylinder.
Protection against drilling
The carbide elements in the MCS cylinder core provide effective protection against drilling.
Impact key protection
With this complicated opening method, burglar professionals use a so-called impact key to try to bring the query positions in the cylinder into the correct position.

How to change your camlock cylinder?

We explain in the video how to change your camlock cylinder easily and quickly with the help of our templates.

If it is necessary to adjust the mounting hole, use our template for adjusting the mounting hole. You can find the template in the "Downloads" section.

Options

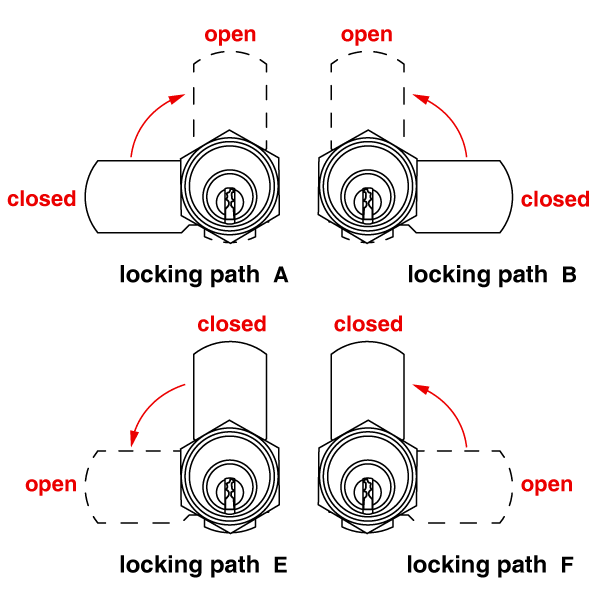

Locking paths:

locking path A: closed on the left, open on the top
locking path B: closed on the right, open on the top
locking path E: closed on the top, open on the left
locking path F: closed on the top, open on the right

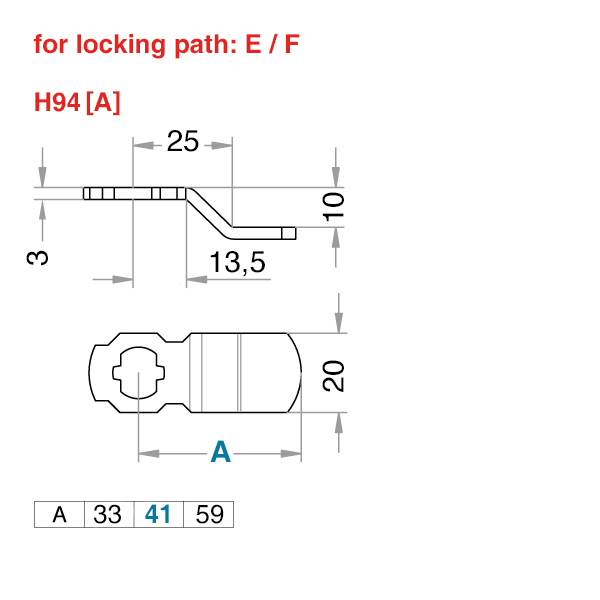

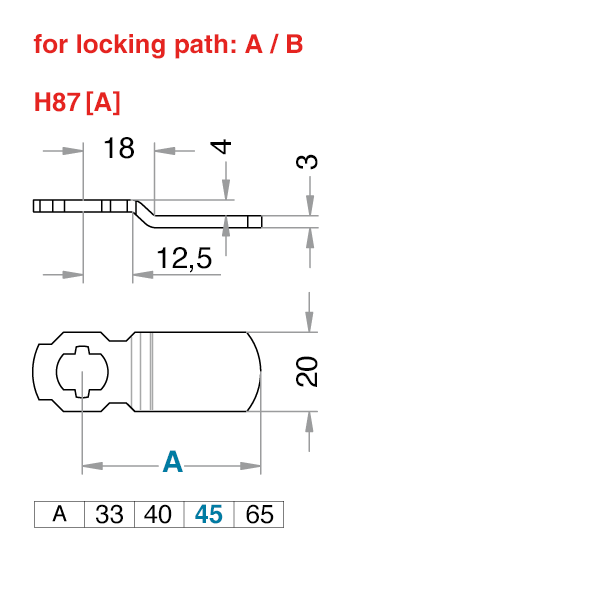

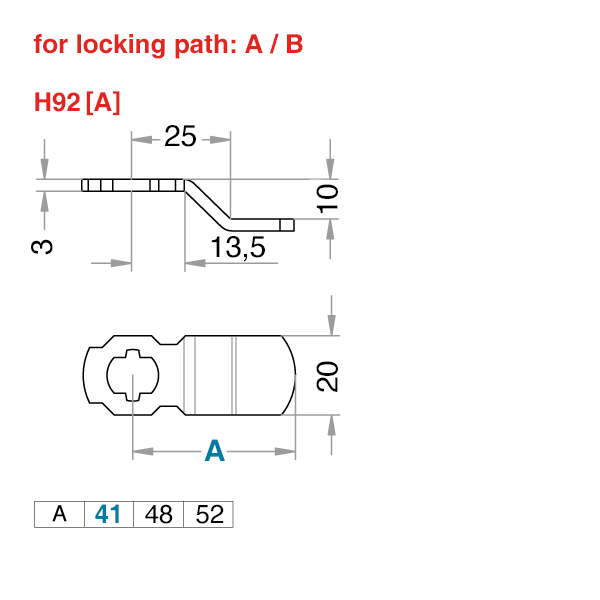

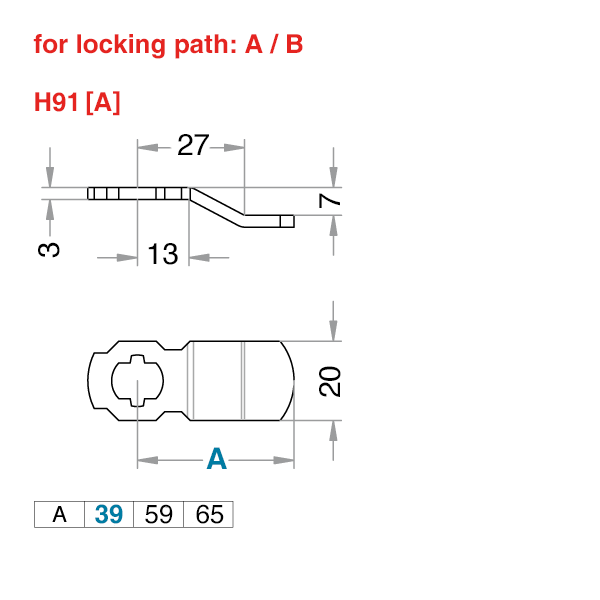

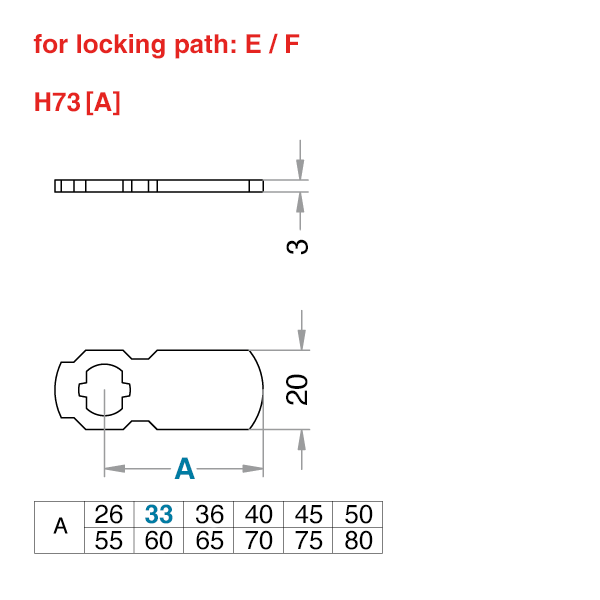

Closing lever variants:

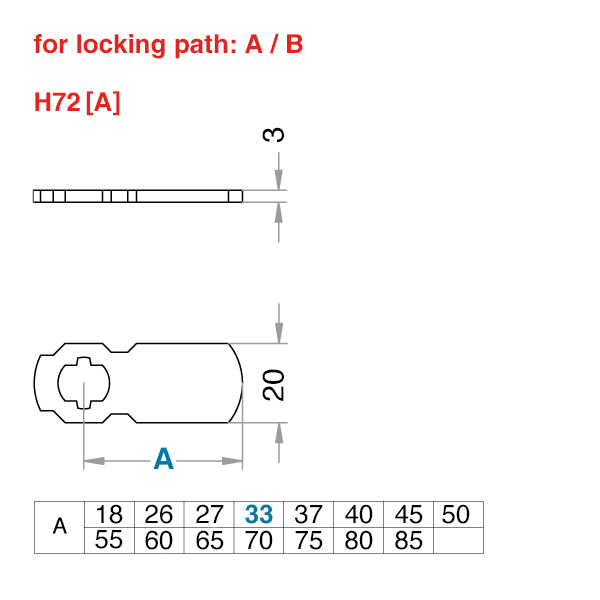

standard closing lever H7233: A = 33 mm, clamping dimension: 26,5 mm
the Renz HB closing lever is suitable for Renz models
If nothing else is requested, we order the respective standard dimension of the locking lever length "A" and for the Renz closing lever "A" and "B (marked in blue). If you require a different length, please indicate this in the order comments during the ordering process.
Please note that the camlock hole still has to be filed or milled out.

Standard closing lever H7233

Closing lever H9139

Closing lever H9241

Closing lever H8745

Closing lever Renz HB2217

Closing lever H7333

Closing lever H9441

Closing lever H8845

You can find an overview of the locking paths and closing levers under Download to download.

Key with design cap:

colours: black, blue and red, yellow, green and white
material thickness design cap: 7,2 mm
plastic caps for special design requirements for keys
ergonomic design and high quality for better haptics
simple optical differentiation
simple management of locking systems through colour assignment
consecutive numbering of the key (key with the same locking authorisation receives a consecutive number)
use exclusively for EVVA keys
factory assembly, subsequent opening and retrofitting is not possible
