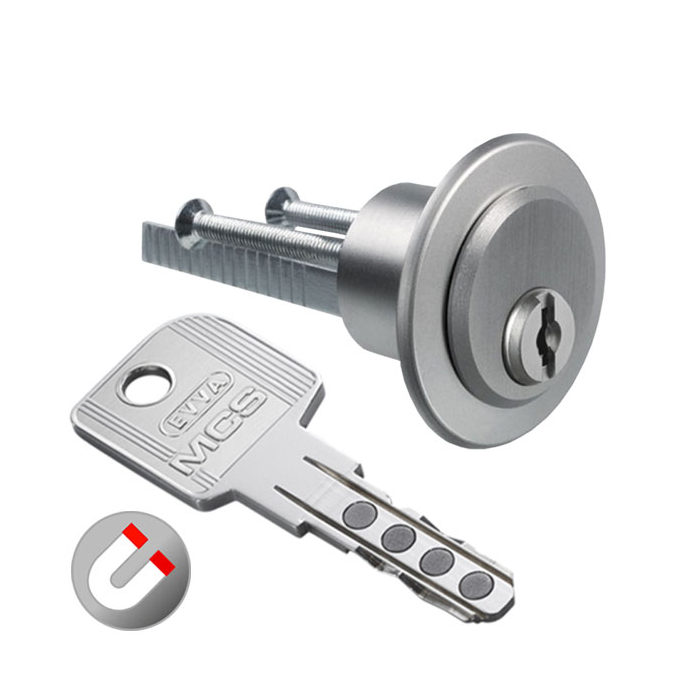

EVVA MCS rim cylinder AZ

SKU

EV.MCS.AZ

Producer No. MCS AZ

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€171.20

incl. VAT, excl. Shipping Cost

Delivery Time

3 - 5 weeks

factory profile

Please note that the delivery time may be extended for options marked with *!

Product settings

locking type

single lock

keyed alike + €8.35

cylinder finishes

number of keys

design cap for key *

colour selection design cap

key with coloured dot *

colour selection colour dot

colour selection - special requests

Qty

Details

EVVA MCS rim cylinder AZ

MCS (Magnetic Code System) guarantees triple security through one magnetic and two mechanical codings. The permanent magnetisation holds constantly. The cylinder core contains 8 rotating magnetic rotors to which the 4 magnetic pills of the key are assigned. If is the key from keyway removed, they always assume a different position. Each magnetic pill can be magnetised differently on each side.

MCS is ideal for locking systems with high demands on perfection and security. Especially for objects where highly sensitive and irretrievable valuables have to be protected.
Locking system reserves can already be taken into account when planning the locking system.

Patent protection until 2035

Measurements:

case length: 24,8 mm
rosette: Ø 50 mm
mounting diameter: 28 mm
cylinder: Ø 34 mm

Technical characteristics:

magnetic code system
dual authorization queries during the locking process
freely rotating magnetic rotors to which the four magnetic pills of the MCS key are assigned
7 additional springless mechanical horizontal locking elements
mechanical control by a length profile system and positively controlled locking pin detection on both key sides
carbide drilling protection in core and body
steel balls as drilling protection for the cylinder fixing screws
picking and scanning protection
impact key protection
locking path: 360°
locking bar for door thickness up to 50 mm
locking bar can be shortened every 5 mm by buckling

Execution:

reversible key system
vertical, easy key insertion
cylinder body and cylinder core: base material brass
slide coating of all locking elements
combination with electronic locking system possible

Key:

key thickness: 2,4 mm
magnetic key made of special resistant nickel silver alloy
permanent magnets made of Samarium-Cobalt-5 guarantee a long life
maximum key copying security
very resistant, low wear
optional: ergonomic design key, key with colour dot

Options / Special equipment:

different cylinder finshes

Operational area:

prepared for EVVA additional box locks of the K900 and K9000 series
luxury trade, research institutions
hospitals, international airports
residences
office building

Scope of delivery:

rim cylinder (round cylinder) AZ incl. 3 or more keys
rosette Ø 50 mm
2 fixing screws M5 x 40
Security card

Manufacturer:

EVVA Sicherheitstechnik GmbH
Höffgeshofweg 30
47807 Krefeld
www.evva.com

Technical details

Magnetic code system - maximum key copying security

The MCS cylinder contains a total of eight freely rotating magnetic rotors to the left and right of the key channel, to which the four magnetic pills of the MCS key are assigned. When an MCS key with a matching magnetic coding is inserted, all magnetic rotors are brought into the correct locking position. 2 mechanic bars above these assign the locking authorisation.
The mechanical control is carried out by a profile system (length profile) and by a positively controlled locking pin detection on both key sides with manipulation control. The permanent magnets made of Samarium-Cobalt-5 guarantee a long service life and cannot be remagnetized or demagnetized by conventional tools.
The unique magnetic keys guarantee maximum security against key copying. Each lock and each key is unique.

EVVA MCS cylinder cross section

EVVA MCS key features

Locking cylinder security
The innovative technologies of the MCS cylinder offer sustainable protection against illegal opening methods:

Picking and scanning protection
The freely rotating magnetic rotors of the MCS cylinder are spatially separated from the key channel and therefore cannot be scanned or manipulated. This means that it is not possible to scan the magnetic coding in the MCS cylinder.
Drilling protection
The carbide elements in the MCS cylinder core provide effective protection against drilling.
Impact key protection
With this complicated opening method, burglar professionals use a so-called impact key to try to bring the query positions in the cylinder into the correct position.

Options

Cylinder finishes:

standard finish: nickel
optional: brass (front polished), brown patinated, black patinated
for individual design requirements
if desired, homogeneous appearance of door cylinder and fitting

Please note:
If a different finish, different from the standard finish, is ordered, extended production times may occur.

nickel

brass polished

brown patinated

black patinated

Key with design cap:

colours: black, blue and red, yellow, green and white
material thickness design cap: 7,2 mm
plastic caps for special design requirements for the keys
ergonomic design and high quality for better haptics
easy optical differentiation
simple management of locking systems through colour assignment
consecutive numbering of the key (key with the same locking authorisation receives consecutive number)
use exclusively for EVVA keys
factory assembly, subsequent opening and retrofitting is not possible
