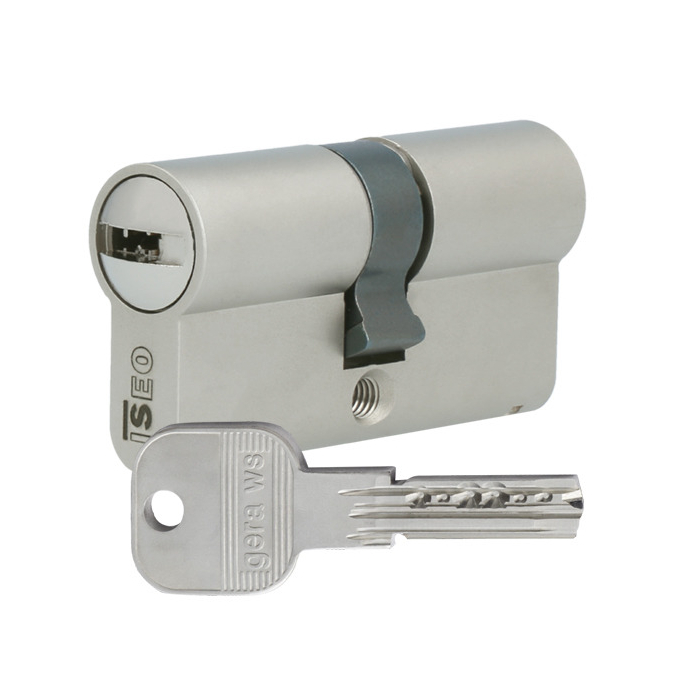

ISEO GERA WS-MC double cylinder modular

ISEO GERA WS-MC double cylinder modular

ISEO GERA WS-MC is a magnetically coded reversible key system with security card. This system fulfils high security requirements thanks to the standard drilling protection and the 6-fold locking authorisation query. A special feature here is the active springless pin, which is only activated by the magnet in the key. The permanent magnet provides additional security against unauthorised key copies. The reversible keys made of nickel silver are corrosion-free, low-wear, easy to handle and offer good locking comfort.

Key blanks of the profile series GERA WS-MC are not freely available in the trade.

Basic length:

• from 30/30 mm
• measured from the middle of cam
• extension 5 mm per side

Technical characteristics:

• 5 pin locking elements made of wear-resistant special brass on each locking side
• 1 additional active springless pin activated by permanent magnet in the key
• 3 hardened cylinder pins in the core and 2 hardened cylinder pins in the body
• 2 intersecting ribs in the centre of the core (paracentric profile)
• 2 anti-picking pins in the cylinder core
• standard drilling protection: three hardened steel pins in the core, 2 hardened steel pins in the body, on both sides
• modular design
• with trademark protection

Execution:

• reversible key system
• horizontal key insertion
• cylinder body: brass matt nickel-plated
• 2 magnets (1 magnet per key side)
• cam made of sintered steel

Key:

• key thickness: 3,6 mm
• reversible key made of nickel silver
• horizontal key insertion
• with permanent magnet
• corrosion-free, low-wear
• easy to handle and good closing comfort
• no key blanks freely available on the market
• optionally: key with colour pin

Special equipment:

• increased drilling protection
• emergency and danger function
• freewheel function

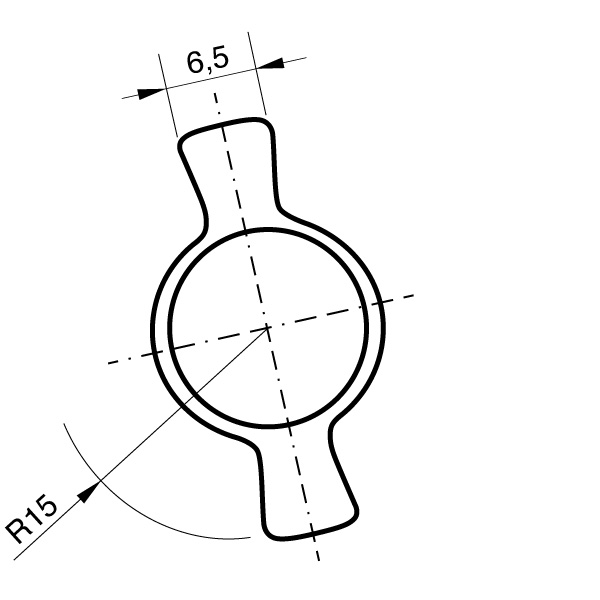

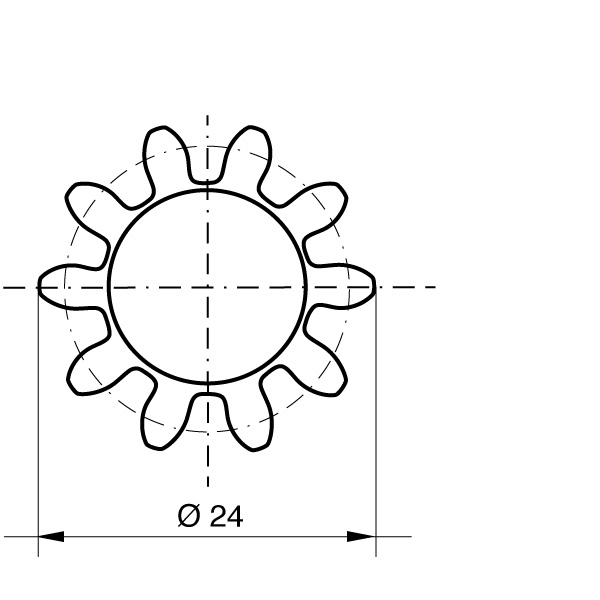

• locking cams (on request)

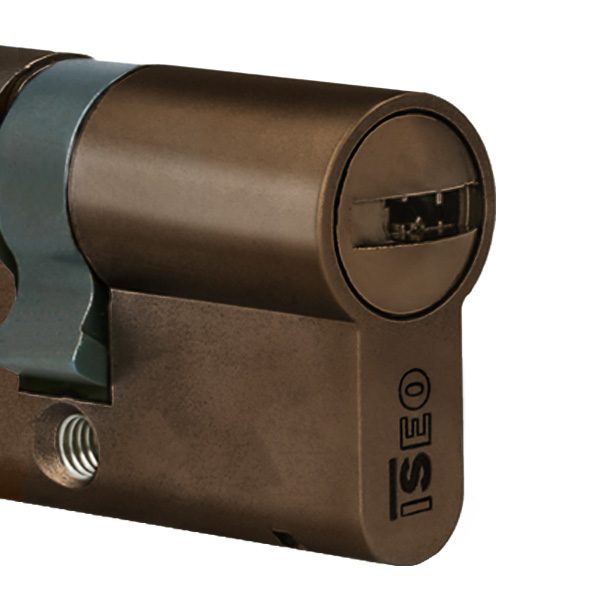

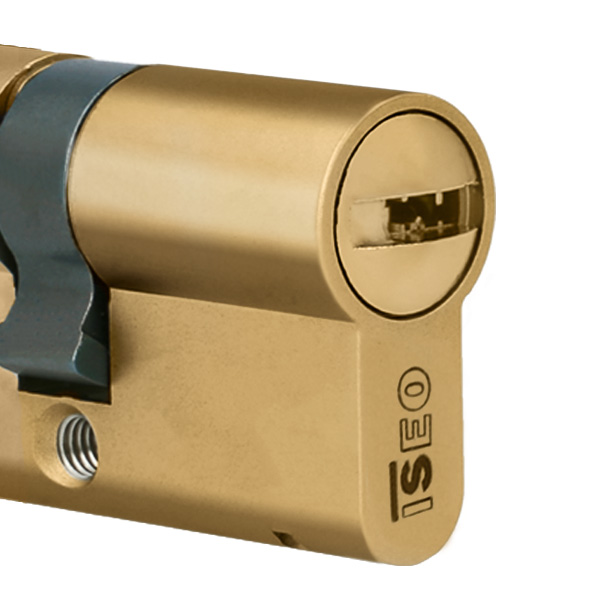

• different cylinder finishes
• low-wear version

Cylinder version:

• not manufactured in modular design

Operational area:

• front doors, connecting doors, office doors, interior doors, exterior doors, apartment doors, gates, wooden doors, aluminium doors, tubular frame doors, etc.
• simply structured properties such as law firms, doctors' practices, offices
• residential buildings

Scope of delivery:

• double cylinder modular incl. 3 or more keys
• 1 fixing screw M5
• Security card
