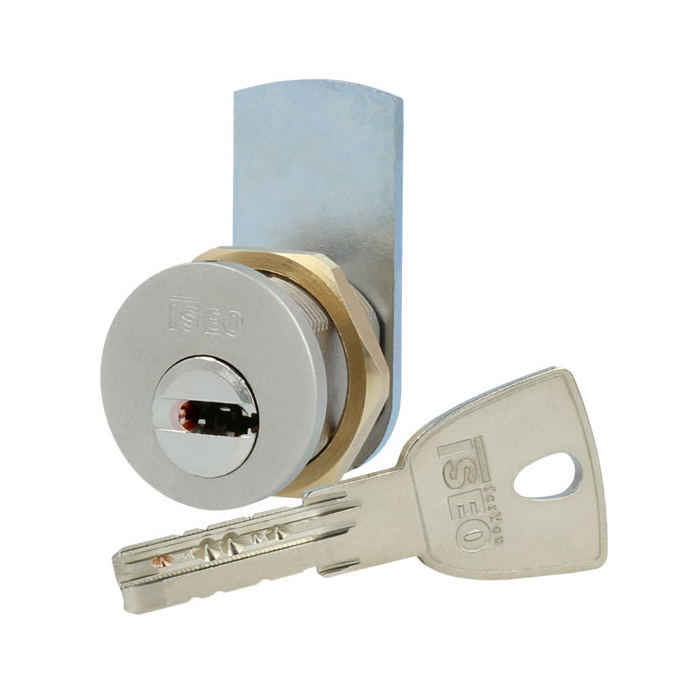

ISEO CSR R9 Country camlock cylinder

ISEO CSR R9 Country camlock cylinder / lever cylinder

The ISEO System CSR R9 Country is a protected and registered reversible key profile. The profile cylinders have drilling protection in the body and core, the core pins are made of stainless steel. The cylinder has a body pulling protection. The nickel silver reversible keys are corrosion-free, wear-resistant, easy to handle and offer good locking convenience.

Key blanks of the CSR R9 Country profile series are not freely available in the trade.

Measurements:

• clamping dimension (standard closing lever): 23 mm
• installation depth: 30,5 mm
• cylinder front: Ø 30 mm
• mounting hole: Ø 25,1 mm lateral reduced to 20,3 mm

Technical characteristics:

• 9-pin system
• 2 rows of pins (one bottom and one side)
• drilling protection in body and core (two hardened pins and a hardened ball in the core, one hardened pin in front of the pin row in the body)
• stainless steel core pins
• profile pin for querying the trademark protection
• locking path: 90°

Execution:

• reversible key system
• horizontal key insertion
• cylinder body: matt nickel plated
• key can only be removed when closed
• locking by closing lever

Key:

• key thickness: 3 mm
• reversible key made of nickel silver
• corrosion-free, low-wear
• easy to handle and good closing comfort
• extended key neck
• key profile is protected and registered, no key blanks freely available in the trade

Options / Special equipment:

• different closing lever variants
• Always indicate the desired locking path when ordering!

Locking paths:

• locking path A: closed on the left, open on the top
• locking path B: closed on the right, open on the top
• locking path E: closed on the top, open on the left
• locking path F: closed on the top, open on the right

Operational area:

• letterboxes, cupboards, cloakroom lockers, safes, light poles or inspection flaps
• suitable for RENZ models 10, 11, 12, 13, 14 SA
• private houses and apartments
• office and commercial areas

Scope of delivery:

• camlock cylinder (type HRZ R9N) incl. 3 or more keys
• closing lever
• mounting nut M25x1
• Security card
