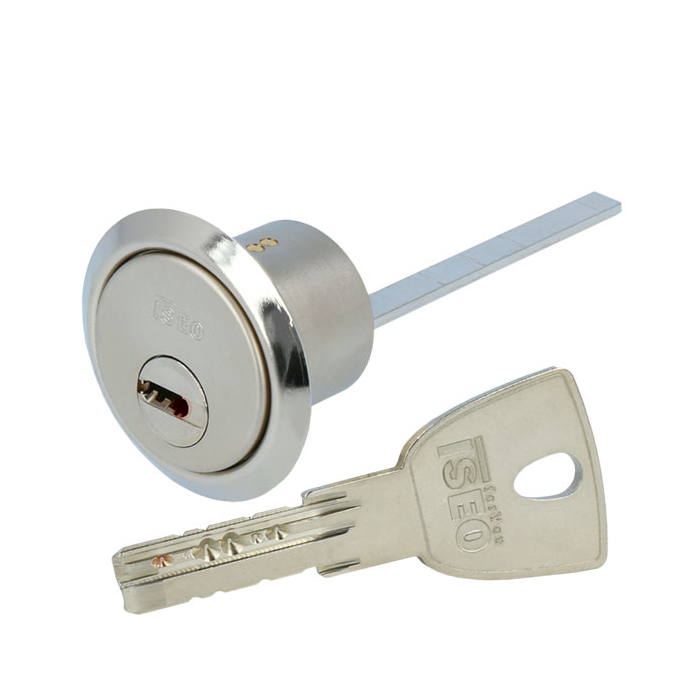

ISEO CSR R9 Country rim cylinder

ISEO CSR R9 Country rim cylinder (round cylinder)

The ISEO System CSR R9 Country is a protected and registered reversible key profile. The profile cylinders have drilling protection in the body and core, the core pins are made of stainless steel. The cylinder has a body pulling protection. The nickel silver reversible keys are corrosion-free, wear-resistant, easy to handle and offer good locking convenience.

Key blanks from the CSR R9 Country profile series are not freely available in the trade.

Measurements:

• mounting diameter: 35 mm

Technical characteristics:

• 9-pin system
• 2 rows of pins (one bottom and one side)
• drilling protection in body and core (two hardened pins and a hardened ball in the core, one hardened pin in front of the pin row in the body)
• stainless steel core pins
• profile pin for querying the trademark protection
• for door thicknesses up to max. 85 mm

Execution:

• reversible key system
• horizontal key insertion
• cylinder body: matt nickel plated

Key:

• key thickness: 3 mm
• reversible key made of nickel silver
• corrosion-free, low-wear
• easy to handle and good closing comfort
• extended key neck
• key profile is protected and registered, no key blanks freely available in the trade

Operational area:

• backset 35 mm for screw-on locks
• indoor and outdoor areas
• in conjunction with DIN mortise locks
• private houses and apartments
• office and commercial areas

Scope of delivery:

• rim cylinder / round cylinder (type RZ R9N) incl. 3 or more keys
• Security card
