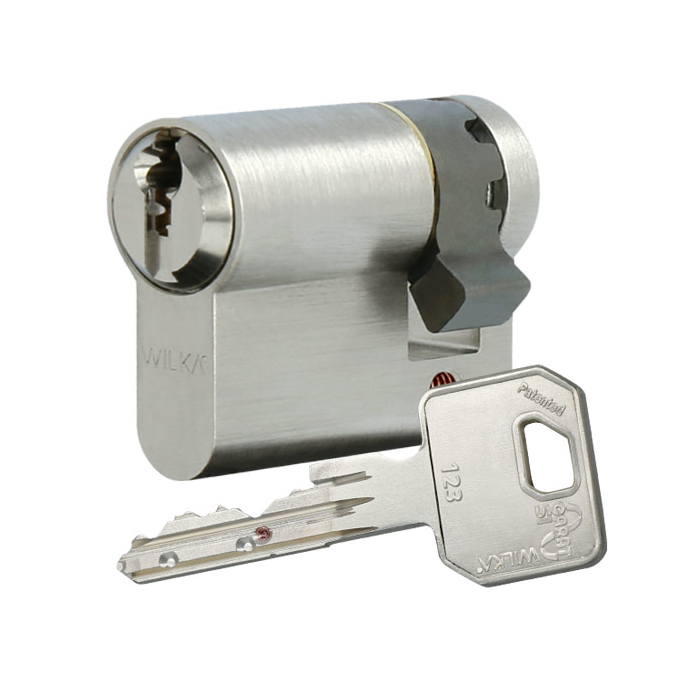

WILKA Carat S1 half cylinder short

SKU

WI.CaratS1.HZ.KL

Producer No. 1410

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€37.90

incl. VAT, excl. Shipping Cost

Delivery Time

6 - 8 weeks

proprietary profile with production at the manufactor

Please note that the delivery time may be extended for options marked with *!

Product settings

locking type

single lock

keyed alike

cylinder length outside short

26,5 mm

cylinder finishes

drilling protection

weather protection

key

Qty

Details

WILKA Carat S1 half cylinder short

The Carat S1 system is the new sinus profile as a vertical, conventional locking system.

SINUS - that is the name of the new system family from WILKA. The new keyways fulfil all expectations that can be posed to a cylinder of a complex keying system.

Patent protection until 2036

Basic length:

26,5/9,5 mm
measured from the middle of cam

Technical characteristics:

5 pin locking elements
up to 8 profile control balls in two additional levels
standard drilling protection (1 hardened steel body pin)
special pins for picking resistance
1 self-locking pin in the body
highest degree of copy protection due to protector pins on key and in cylinder core

Execution:

user-friendly serrated key system
vertical key insertion
cylinder body: brass matt nickel plated
8-fold adjustable cam, in 45° steps
easy integration into the "easy" electronic locking system through mechatronic key

Key:

key thickness: 2,7 mm
paracentric key profile against unauthorized opening with locking tools
protector nickel silver key made of high-quality, low-wear nickel silver (highest patented key copy protection)
serrated key
new key design for use with standard security fittings

Options / Special equipment:

different cylinder finishes
drilling potections (ABH I and ABH III)
seawater resistant version

Operational area:

additional locks, garage doors, sheds and side doors
private houses and apartments
commercial sectors

Scope of delivery:

half cylinder short
incl. 1 or more keys
1 fixing screw M5
Security card

Manufacturer:

WILKA Schließtechnik GmbH
Mettmanner Str. 58 – 64
42549 Velbert
www.wilka.de

Technical details

How to measure the cylinder length correctly?

You can also find help in determining the correct length in our Help Center for "Cylinder Gauge".

Options

Cylinder finish:

standard finish: brass matt nickel plated
optional: brass polished, brass matt brushed
for individual design requirements
if desired, homogeneous appearance of door cylinder and fitting

Please note:
If a different cylinder finish, different from the standard finish, is ordered, extended production times may occur.

brass matt nickel plated

brass polished

brass matt brushed

Drilling protection I (ABH I):

for profile cylinders on endangered doors in conventional systems
all pin locking elements made of hardened special steel (nickel plated)
drilling protection is on both sides
not combinable with the option: seawater resistant version

Drilling protection III (ABH III):

for profile cylinders on endangered doors in conventional systems
all pin locking elements made of hardened special steel (nickel plated)
core with 2 hardened, nickel plated steel pins for increased protection against pulling and drilling
body with 2 hardened, nickel plated steel pins for increased body drilling protection
on one side at the outside of the cylinder
not combinable with the option: seawater resistant version

Seawater resistance:

seawater-resistant version or for damp rooms (e.g. bathrooms, sauna, cold storage rooms...)
cam and fastening screw made of brass
knob cylinder with brass knob
all pin locking elements made of brass (nickel plated)
not combinable with the option: increased drilling protection (ABH I / III) or pulling protection
