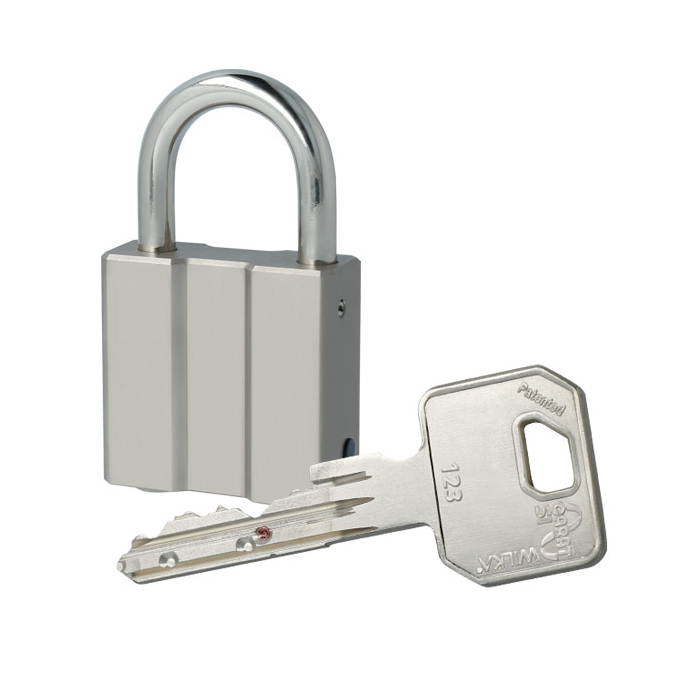

WILKA Carat S1 padlock

WILKA Carat S1 padlock

The Carat S1 system is the new sinus profile as a vertical, conventional locking system.

SINUS - that is the name of the new system family from WILKA. The new keyways fulfil all expectations that can be posed to a cylinder of a complex keying system.

Patent protection until 2036

Measurements:

• standard shackle height: 30 mm
• shackle: Ø 8 mm
• case width: 53 mm

Technical characteristics:

• 6 pin locking elements
• up to 8 profile control balls in two additional levels
• special pins for picking resistance
• with forced locking: lock can only be locked with a key, key can be removed at any time
• highest degree of copy protection due to protector pins on key and in cylinder core
• seawater resistant

Execution:

• user-friendly serrated key system
• vertical key insertion
• padlock: brass matt brushed
• shackle: stainless steel
• with profile insert, exchangeable
• easy integration into the "easy" electronic locking system through mechatronic key

Key:

• key thickness: 2,7 mm
• paracentric key profile against unauthorized opening with locking tools
• protector nickel silver key made of high-quality, low-wear nickel silver (highest patented key copy protection)
• serrated key
• new key design for use with standard security fittings

Options / Special equipment:

• different shackle heights (80 mm)

Operational area:

• cellar boxes, wardrobe lockers, other closures
• private houses and apartments
• commercial sectors

Scope of delivery:

• padlock
• incl. 1 or more keys
• Security card

Manufacturer:

WILKA Schließtechnik GmbH
Mettmanner Str. 58 – 64
42549 Velbert
www.wilka.de
