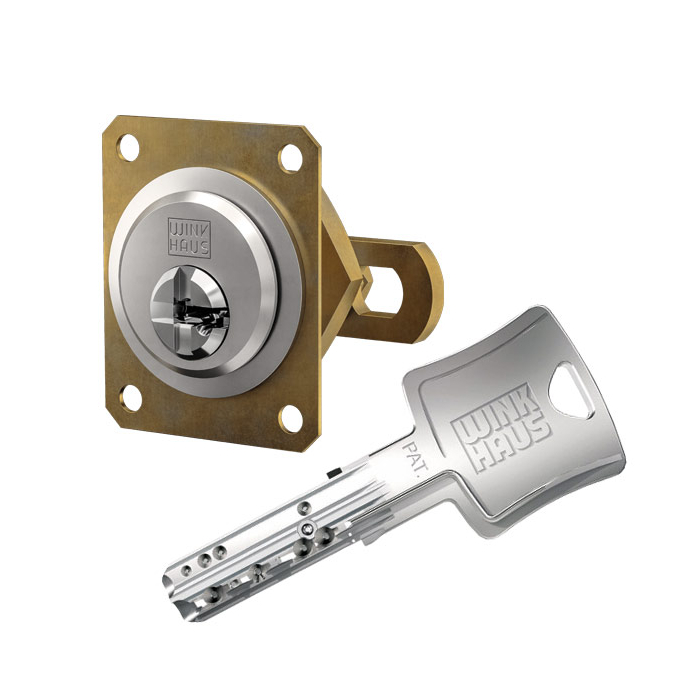

WINKHAUS keyTec ON-tra+ camlock cylinder
The reversible key system WINKHAUS keyTec ON-tra+ offers a very special comfort in key insertion. In addition to the convenient handling, the system has a high locking security, a standard drilling and picking protection and provides a high protection against manipulation.
The reversible key system keyTec ON-tra+ also has another technical security element in the form of WINKHAUS AZE protection. The additional interrogation unit in the cylinder in combination with the additional element mounted in the key promises extra security and flexibility and effectively protects against key duplication and manipulation.
Patent protection until 2034
Measurements:
- installation depth: 40 mm
- clamping dimension (lever H1): 30 mm
- mounting hole: Ø 26 mm lateral reduced to 22 mm
Technical characteristics:
- 6 spring-loaded solid pin locking elements on each side
- additional up to 14 springless controlled radial pins on 3 closing levels
- optimal protection through additional interrogation unit AZE protection
- 6-pin system in 5-pin dimension
- standard drilling and picking protection through hardened, stainless steel special pins
- profile scanning through catch pin function (manipulation protection)
- high locking security due to tumblers, radial pins and catch pin on 3 locking levels
- cross groove at the core
- stainless steel core pins
- reinforced key insertion through special cylinder cores
- locking path: 90°, lever path: 90°
- right and left lever adjustable
- for material thicknesses up to 18 mm
- locking plate
- manufactured according to DIN 18252 and EN 1303
Execution:
- reversible key system
- comfortable horizontal key insertion
- cylinder body: nickel plated
- key can only be removed when closed
- locking by locking lever
- combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components double knob cylinder, access reader, door fitting)
Key:
- key thickness: 3,4 mm
- increased wear resistance due to nickel silver material
- ergonomically shaped key head for better grip
- 13,3 mm key shaft for the combination of all common safety fittings
- rounded key tip for better insertion comfort
- modern key design
- optimal protection through additional interrogation unit AZE protection
Options / Special equipment:
- different closing lever variants (standard closing lever H1)
- Always indicate the desired locking path when ordering!
Locking paths:
- locking path A: closed on the left, open on the top
- locking path B: open on the right, closed on the top
- locking path C: open on the left, closed on the bottom
- locking path D: closed on the right, open on the bottom
- locking path E: closed on the top, open on the left
- locking path F: open on the top, closed on the right
- locking path G: closed on the left, open on the bottom
- locking path H: open on the right, closed on the bottom
Operational area:
- letterboxes, cupboards
- for use in large properties with comprehensive locking hierarchies
Scope of delivery:
- camlock cylinder / lever cylinder incl. 3 or more keys
- standard closing lever H1
- mounting nut M26x1
- locking plate
- Security card
How to change your camlock cylinder?
Locking paths:
- locking path A: closed on the left, open on the top
- locking path B: open on the right, closed on the top
- locking path C: open on the left, closed on the bottom
- locking path D: closed on the right, open on the bottom
- locking path E: closed on the top, open on the left
- locking path F: open on the top, closed on the right
- locking path G: closed on the left, open on the bottom
- locking path H: open on the right, closed on the bottom
Closing lever variants:
- standard closing lever H1, clamping dimension: 30 mm

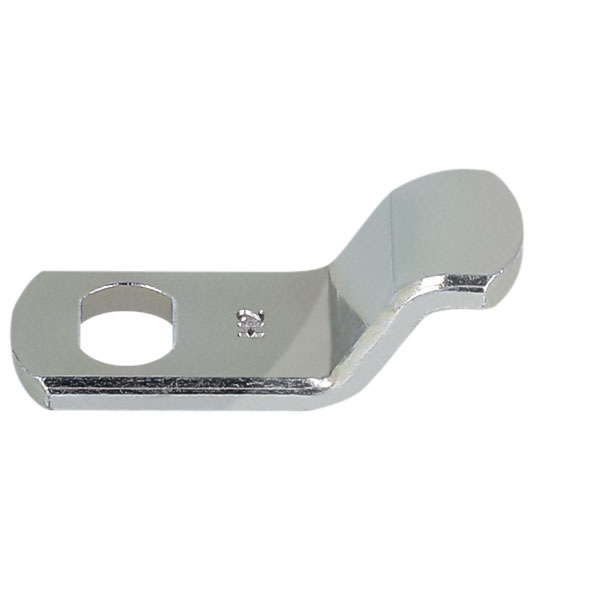

- closing lever H2, clamping dimension: 17,5 mm

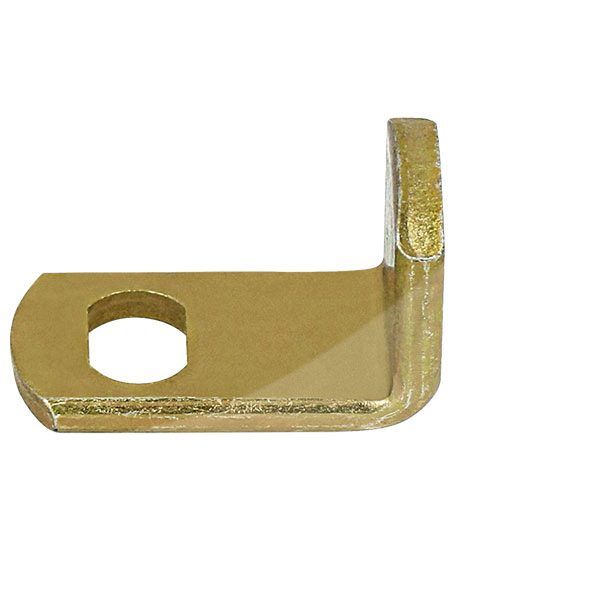

- closing lever H3, clamping dimension: 9 mm

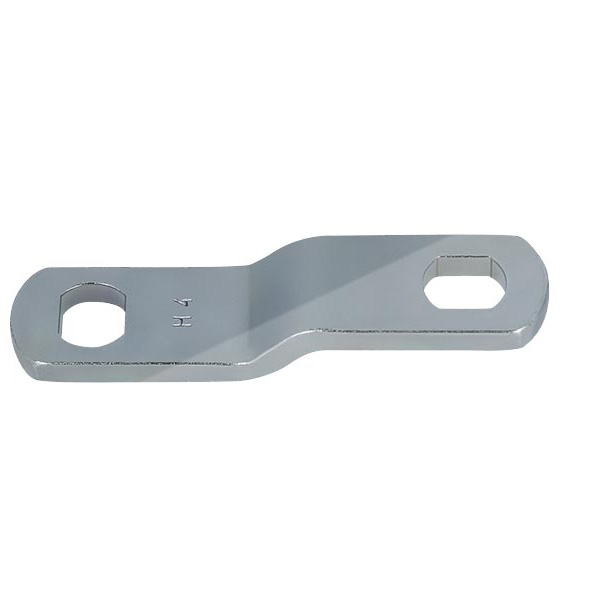

- closing lever H4, clamping dimension: 24 mm
- locking path A, D, F, G: closing lever H1, H2, H3, H4
- locking path B, C, E, H: closing lever H1 or H4
- Please note that the camlock hole still needs to be filed or milled out.
