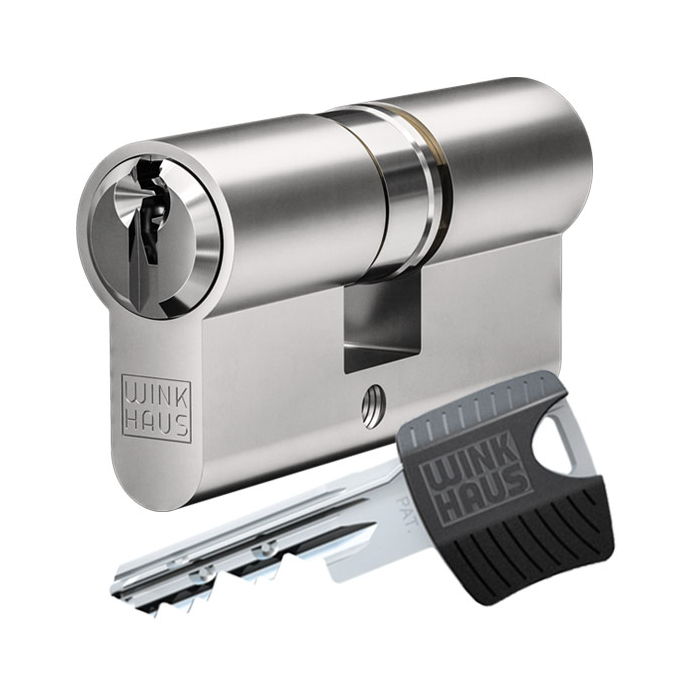

WINKHAUS keyTec RPE double cylinder asymmetric

WINKHAUS keyTec RPE double cylinder asymmetric

With the patented keyTec RPE system from WINKHAUS, sophisticated locking technology can now also be implemented flexibly and economically in private homes.

A new type of copy protection provides the certainty that only authorised persons can make a duplicate key. This is achieved by a specially shaped rib on the key, which is scanned in the locking cylinder by a locking ball (protectBall).

Patent protection until at least 2028

Basic length:

• from 27,8/34,8 mm
• max. up to 27,8/44,8 mm
• measured from the middle of cam
• extension in 5 mm steps

Technical characteristics:

• 5 spring-loaded solid pin locking elements per side
• additionally up to 8 lateral springless controlled radial pins, which are scanned through bore recesses (calottes) on the key and thus improve scanning protection
• protection against drilling through hardened, stainless steel pins
• emergency and danger function
• standard picking protection through special pins
• locking ball (protectBall) with rib check
• multiple paracentric key profiles for increased unlocking security
• core pins made of resistant hard bronze
• reinforced key insertion through special cylinder cores
• manufactured according to DIN 18252 and EN 1303

Execution:

• conventional locking system
• vertical key insertion
• cylinder body: nickel plated
• one-piece locking cam made of sintered steel, non-toxic corrosion protection
• combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components double knob cylinder, access reader, door fitting

Key:

• key thickness: 3 mm
• serrated key made of wear-resistant nickel silver
• ergonomically shaped key head for better grip
• 13,1mm key shaft for the combination of all common safety fittings
• specially shaped key tip for less wear
• modern key design
• high-quality plastic cap in different colours for individual adjustment
• caps in different colours optionally available

Options / Special equipment:

• different cylinder finishes
• seawater resistant version
• colour selection of the key cap

Operational area:

• front doors, connecting doors, office doors, interior doors, exterior doors, apartment doors, gates, etc.
• interior and exterior areas, in connection with DIN mortise locks
• Note: not suitable for use in anti-panic multipoint locks according to test guideline (FZG).

Scope of delivery:

• double cylinder asymmetric incl. 3 or more keys
• fixing screw
• Mounting tip: make sure that there is a projection of max. 3 mm when mounting!
• Security card

Manufacturer:

Aug. Winkhaus SE & Co. KG
August-Winkhaus-Straße 31
48291 Telgte
www.winkhaus.com
