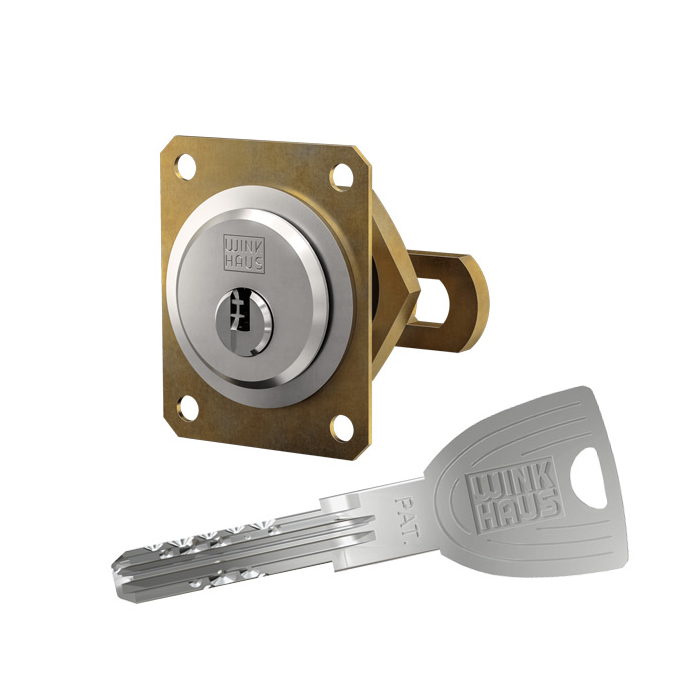

WINKHAUS keyTec X-tra camlock cylinder

WINKHAUS keyTec X-tra camlock cylinder / lever cylinder

The system combines the advantages of conventional "serrated keys", such as a wide range of key profiles and a large number of variants, with the convenience of reversible key systems.

In addition to convenient operation, the variable locking surfaces with up to 20 spring-loaded radial pins and multiple stepped calotte bores, standard drilling and pulling protection and the special convex shape of the key ensure the high security of the X-tra reversible key system.

Patent protection until 2025

Measurements:

• installation depth: 40 mm
• clamping dimension (lever H1): 30 mm
• mounting hole: Ø 26 mm lateral reduced to 22 mm

Technical characteristics:

• up to 20 radially arranged locking pins in 4 rows per side
• picking protection
• high manipulation protection
• reinforced key insertion through special cylinder cores
• locking path: 90°, closing lever path: 90°
• right and left lever adjustable
• for material thicknesses up to 18 mm
• locking plate
• manufactured according to DIN 18252 and EN 1303

Execution:

• reversible key system
• comfortable vertical key insertion
• cylinder body: nickel plated
• key can only be removed when closed
• locking by closing lever
• combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components double knob cylinder, access reader, door fitting

Key:

• key thickness: 3,4 mm
• comfortable reversible key
• increased wear resistance due to nickel silver material
• ergonomically shaped key head for better grip
• 13,5 mm key shaft for the combination of all common safety fittings
• variable longitudinal profiles prevent the insertion of unauthorised keys
• special key tip for better insertion comfort
• key cap in different colours optionally available

Options / Special equipment:

• different closing lever variants (standard closing lever H1)
• Always indicate the desired locking path when ordering!

Locking paths:

• locking path A: closed on the left, open on the top
• locking path B: open on the right, closed on the top
• locking path C: open on the left, closed on the bottom
• locking path D: closed on the right, open on the bottom
• locking path E: closed on the top, open on the left
• locking path F: open on the top, closed on the right
• locking path G: closed on the left, open on the bottom
• locking path H: open on the right, closed on the bottom

Operational area:

• letterboxes, cupboards
• public institutions, schools, kindergartens

Scope of delivery:

• camlock cylinder / lever cylinder incl. 3 or more keys
• standard closing lever H1
• mounting nut M26x1
• locking plate
• Security card
