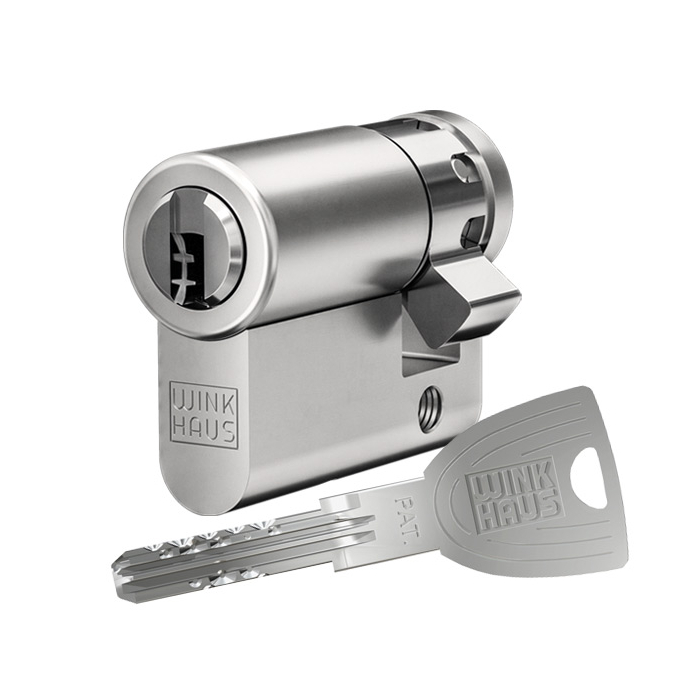

WINKHAUS keyTec X-tra half cylinder

WINKHAUS keyTec X-tra half cylinder

The system combines the advantages of conventional "serrated keys", such as a wide range of key profiles and a large number of variants, with the convenience of reversible key systems.

In addition to convenient operation, the variable locking surfaces with up to 20 spring-loaded radial pins and multiple stepped calotte bores, standard drilling and pulling protection and the special convex shape of the key ensure the high security of the X-tra reversible key system.

Patent protection until 2025

Basic length:

• from 30,2/9,2 mm
• measured from the middle of cam
• extension in 5 mm steps

Technical characteristics:

• up to 20 radially arranged locking pins in 4 rows per side
• standard drilling and pulling protection: on the outside additional carbide pins in the cylinder core and in the cylinder body
• picking protection
• high manipulation protection
• modular cylinder design for subsequent length change
• reinforced key insertion through special cylinder cores
• manufactured according to DIN 18252 and EN 1303

Execution:

• reversible key system
• comfortable vertical key insertion
• cylinder body: nickel plated brass
• one-piece cam made of sintered steel, non-toxic corrosion protection
• cam adjustable in 8 positions
• combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components double knob cylinder, access reader, door fitting

Key:

• key thickness: 3,4 mm
• comfortable reversible key
• increased wear resistance due to nickel silver material
• ergonomically shaped key head for better grip
• 13,5 mm key shaft for the combination of all common protective fittings
• variable longitudinal profiles prevent the insertion of unauthorised keys
• special key tip for better insertion comfort
• key cap in different colours optionally available

Options / Special equipment:

• different cylinder finishes
• key caps

Operational area:

• front doors, connecting doors, office doors, interior doors, exterior doors, apartment doors, gates, etc.
• mortise locks, garage door locks, key switches

Scope of delivery:

• half cylinder incl. 3 or more keys
• fixing screw
• Mounting tip: make sure that there is a projection of max. 3 mm when mounting!
• Security card

Manufacturer:

Aug. Winkhaus SE & Co. KG
August-Winkhaus-Straße 31
48291 Telgte
www.winkhaus.com
