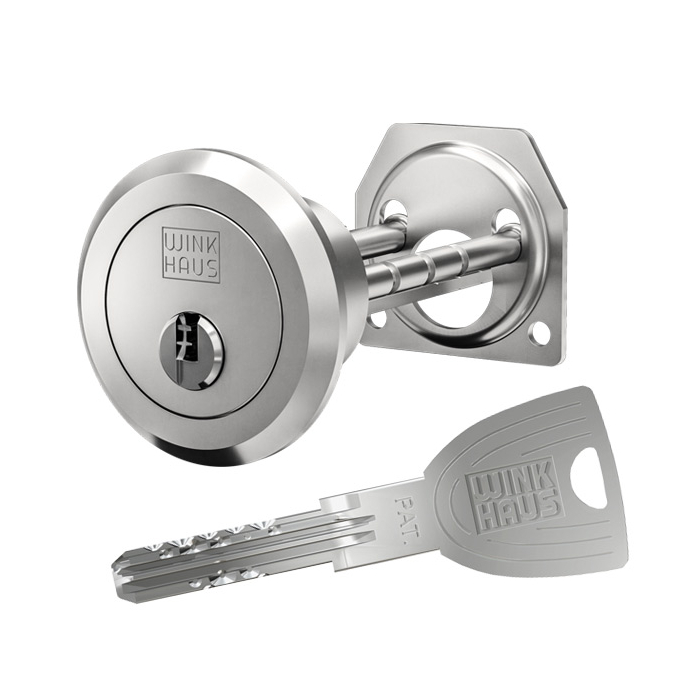

WINKHAUS keyTec X-tra rim cylinder

WINKHAUS keyTec X-tra rim cylinder type 27

The system combines the advantages of conventional "serrated keys", such as a wide range of key profiles and a large number of variants, with the convenience of reversible key systems.

In addition to convenient operation, the variable locking surfaces with up to 20 spring-loaded radial pins and multiple stepped calotte bores, standard drilling and pulling protection and the special convex shape of the key ensure the high security of the X-tra reversible key system.

Patent protection until 2025

Measurements:

• case length: 24,7 mm
• rosette: Ø 43,8 mm
• mounting diameter: 32 mm

Technical characteristics:

• up to 20 radially arranged locking pins in 4 rows per side
• picking protection
• high manipulation protection
• reinforced key insertion through special cylinder cores
• suitable for door thicknesses 40 - 75 mm
• manufactured according to DIN 18252 and EN 1303

Execution:

• reversible key system
• comfortable vertical key insertion
• cylinder body: brass nickel plated
• combination with electronic possible (mechatronic key or mechanical key with integrated transponder for the operation of electronic components double knob cylinder, access reader, door fitting

Key:

• key thickness: 3,4 mm
• comfortable reversible key
• increased wear resistance due to nickel silver material
• ergonomically shaped key head for better grip
• 13,5 mm key shaft for the combination of all common safety fittings
• variable longitudinal profiles prevent the insertion of unauthorised keys
• special key tip for better insertion comfort
• key cap in different colours optionally available

Options / Special equipment:

• type 27/09 for ABUS box locks, Ø 28 mm, incl. ABUS rosette
• type 27/10 for IKON rim locks and multiple locking systems, Ø 29 mm

Operational area:

• for WINKHAUS box locks (type 27)
• for ABUS case locks (type 27/09), for IKON case locks (type 27/10)

Scope of delivery:

• rim cylinder type 27 incl. 3 or more keys
• mounting plate and screws
• Security card

Manufacturer:

Aug. Winkhaus SE & Co. KG
August-Winkhaus-Straße 31
48291 Telgte
www.winkhaus.com
