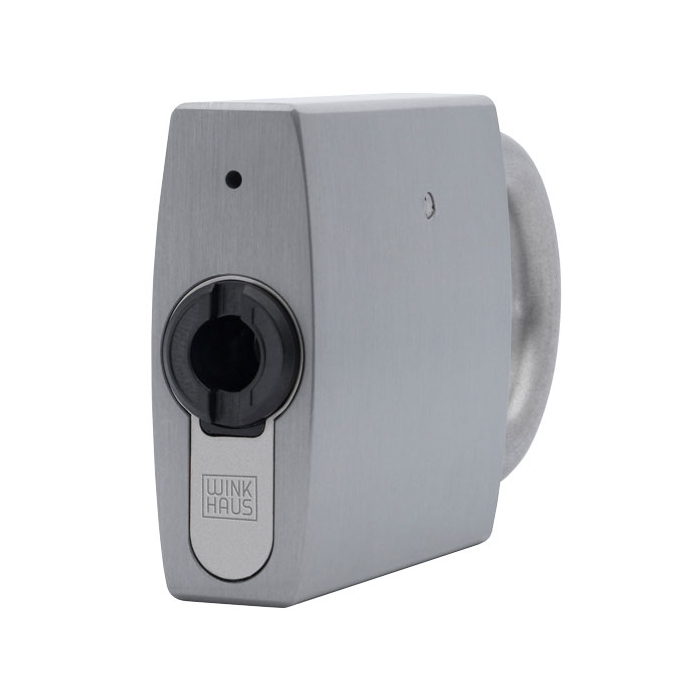

WINKHAUS blueCompact padlock BO 85

Wireless interface:

• Bluetooth® Low Energy

Power supply:

• CR 1220 3 V lithium cell
• when changing the battery: relearn the time using mastekey (locking plan is retained)
• display battery change in the blueCompact app
• The battery replacement set is required for battery replacement!

Environment / Service life:

• temperature: +5 °C to +55 °C
• service life: up to 10.000 cycles or up to 6 years stand-by

No cloud storage

blueCompact does everything to ensure that your data is protected at all times. All details about your locking system are not stored in a cloud, but are securely stored on the key itself. This means that no one is able to access the information that authorises them to open the doors without your permission.

Operation / management via app blueCompact

Smart system with smart operation

The uncomplicated operation via app makes the management of the complete system child's play and maximally convenient. As the first system ever, blueCompact thus enables you to implement the operation of all processes, authorisations and changes via your smartphone or tablet.

Learn the whole system easily

blueCompact meets all the requirements of a user-friendly system. Because although this access organization comes up with a large variety of functions, the operation and use is very easy to understand and intuitive to learn. A video tutorial concept guides you and explains each individual function step by step.

Issue locking authorisations remotely

blueCompact has been thought through down to the smallest detail and also offers you a solution if you want to issue locking authorisation remotely. For example, you can deposit a key with a neighbour who will then use it in acute emergencies. The prerequisite for this is that you send him the permission via app while on the move and thus activate the key.

Every locking event at a glance

In the app, you can see clearly and precisely which key has gained access to which room at what time. This gives you the possibility of comprehensive access control of your building. With blueCompact, you therefore constantly keep track of everything that is going on at your doors.

Create and manage time profiles

By creating time profiles, you have the option of reacting flexibly to external influencing factors. Depending on your needs, you can configure the locking authorisations for each individual key according to time. This makes it easy to control which people are allowed to enter certain rooms at which times.

React directly to key loss

Thanks to management via app, you can act immediately after losing a key and block it without delay. The revoked authorizations ensure that the key becomes practically worthless for the finder. Should the key reappear, you can reactivate it in minutes.

Requirement of the operating system for the app

• Android from version 5.0
• iOS from version 9

The smartphones must use at least Bluetooth version 4.0.

blueCompact activation set

The activation set contains everything you need for the initial programming of your system. Simply order the locking cylinders and additional user keys as required.

The activation set is required for commissioning a blueCompact system. Please keep the PUK and activation card in a safe place!

Scope of delivery:

• 4 user keys (passive)
• active key as master key
• adapter
• activation card
• PUK card
• quick guide

Masterkey

• key thickness: 18,2 mm
• plastic key in black (high-performance plastic)
• as master key for programming and administration, stores all data of the locking system
• can be used as active user key for remote authorization and authorization planning
• emergency power supply for cylinders (own and external power function), e.g. for opening when the cylinder battery is completely empty by means of inductive energy transmission
• multi-colour LED for status signalling (Bluetooth, battery status, etc.)
• Bluetooth Low Energy interface
• easy battery change
• readout of up to 2.000 locking events
• up to 30.000 locking events or 4 years stand-by as passive user key
• operating temperature: +5 °C to +55 °C
• storage temperature: -25 °C to +70 °C
• protection class IP50
• battery: CR 2032 3 V lithium cell

User key

• key thickness: 10,8 mm
• plastic key in 5 trendy colours (blue, pink, green, yellow, grey) (high performance plastic)
• maintenance-free
• battery-free
• temperature range: -20 °C to +75 °C
• machine washable
• disinfectable with Sterilium
• programming: with Masterkey
• identification medium for blueCompact cylinder
